Kalite pwodwi: Idwolik bride SAE adaptè ekipman 1FFS9 koud ORFS
Nòm endistri yo: SAE J518, ISO 6162 SAE J1453
Koneksyon E pou style F: 90 ° ORB KONTE O-RING / SERI S BRANGE ISO 6162-2
Fòm: koud, dwat, blòk elatriye
Travay presyon Rating: kòd SAE 61 se 2.5 a 31.5 Mpa; Kòd SAE 62 se 40 Mpa.
Materyèl Materyèl: kwiv; Kabòn asye; Asye pur
Aplikasyon: Ekipman Agrikilti, Pwosesis Otomobil, Transfè Chimik, Ekipman Konstriksyon, Transfè Gaz, Idwolik, Ekipman Manifakti, Marin, Manipilasyon Materyèl, Ekipman mobil, Petwòl, Emballage, Transpòtasyon

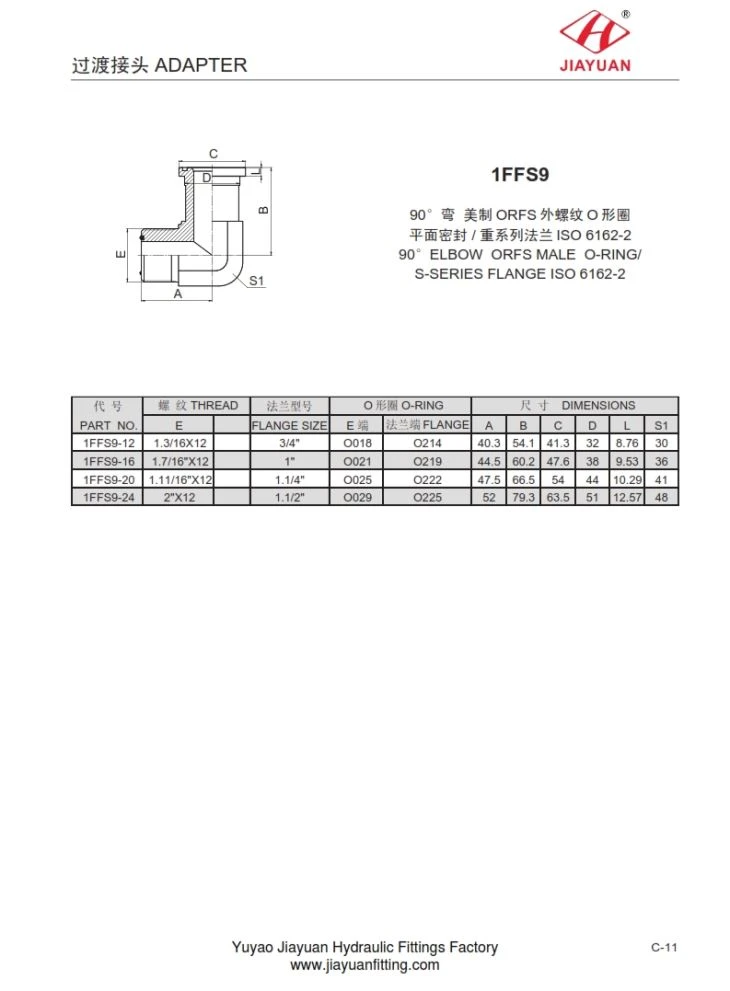

1FFS9 koud ORFS gason O-bag / S-seri bride idwolik ISO 6162-2 dimansyon dimansyon tablo tablo jan sa a ...
PATI NO. | FIL | O O-RING | DIMANSYON | ||||||||
E | FLANN SIZE | E | BRIDE | A | B | C | D | L | S1 | ||
1FFS9-12 | 1.3 / 16X12 | 3/4 " | O018 | O214 | 40.3 | 54.1 | 41.3 | 32 | 8.76 | 30 | |
1FFS9-16 | 1.7 / 16 "X12 | 1 " | O021 | O219 | 44.5 | 60.2 | 47.6 | 38 | 9.53 | 36 | |
1FFS9-20 | 1.11 / 16 "X12 | 1.1 / 4 " | O025 | O222 | 47.5 | 66.5 | 54 | 44 | 10.29 | 41 | |
1FFS9-24 | 2 "X12 | 1.1 / 2 " | O029 | O225 | 52 | 79.3 | 63.5 | 51 | 12.57 | 48 |
