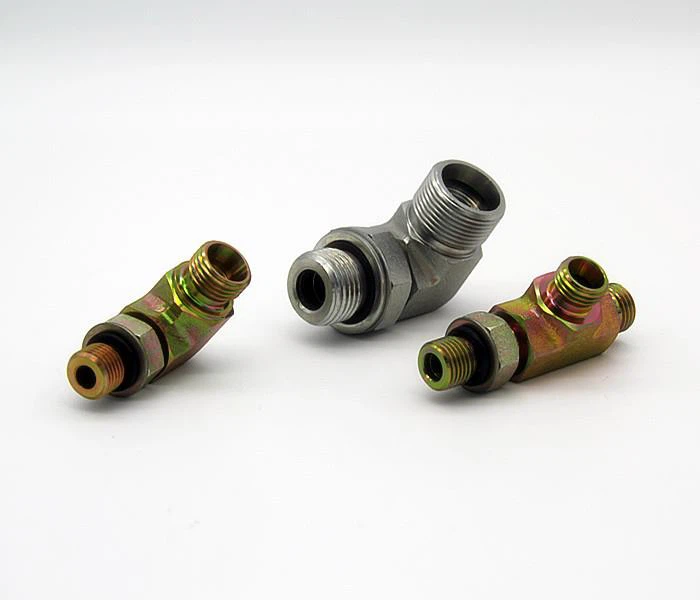

Fen reglabl se stud fil fi, li konpoze de PIN, machin pou lave back-up, o-rings ak bag repwan. Fittings DIN se fen estanda nan 24 deg kòn Connector ak ekipman bag koupe konekte tiyo asye, cartes oswa manch asanble, ekipman stud reglabl yo souvan jwenn sou koud, Tee ak ekipman Cross pou pèmèt pou oryantasyon apwopriye nan ekipman yo.
Voye rechèch
Chat kounye a
Dekri teren

Definisyon: fen reglabl se stud fil fi, li konpoze de PIN, machin pou lave back-up, o-rings ak bag repwan. Fittings DIN se fen estanda nan 24 deg kòn Connector ak ekipman bag koupe konekte tiyo asye, cartes oswa manch asanble, ekipman stud reglabl yo souvan jwenn sou koud, Tee ak ekipman Cross pou pèmèt pou oryantasyon apwopriye nan ekipman yo.


Metòd nan fen stud reglabl: Li pral reyini ak yon k ap fren, tounen-machin pou lave, poze sele pa O-bag oswa O-bag + Pwoteje Ring. Gen kat estanda nan pò poze sele jan sa a:

Fil metrik + o-bag + kenbe o-bag (ISO 9974)

Fil Mètr + O-bag ISO 6149

UN / UNF fil + O-bag ISO 11926 SAE J1926 ORB

Fil BSPP + O-bag + Ring kenbe (ISO 1179)

Se pete ak siklik andirans (enpilsyon) tès dwe fèt nan selon ISO 19879.


image001image003


Dimansyon, presyon k ap travay, pèfòmans, aranjman ak anfòm nan ajan poto reglabl fen, O-bag, deziyasyon nan bout stud, tanpri kontakte nou pa imel.

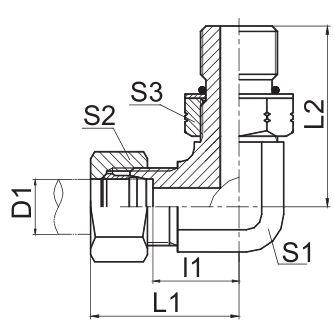

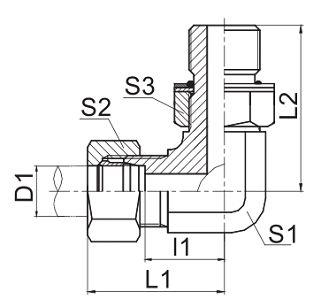

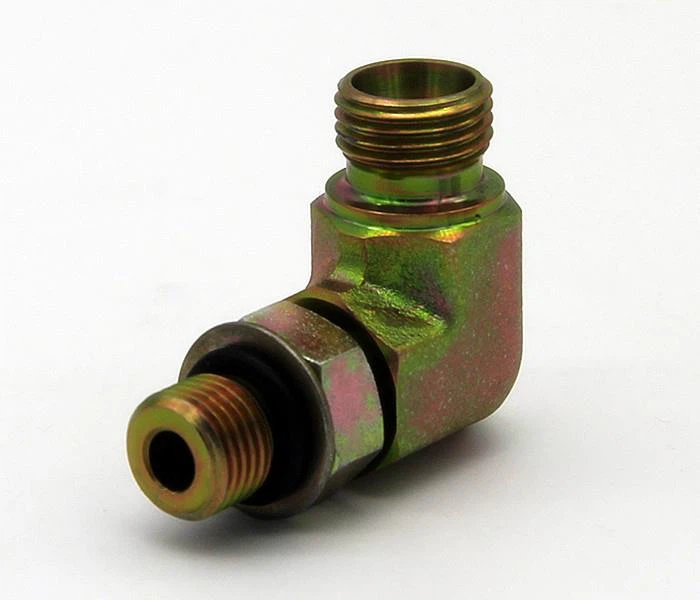

1. Ekipman pou koud adaptab 1CH9 / 1DH9

24 DEV kòn fen / Reglabl Stud Fen O-bag ISO 6149 Oswa O-bag + Pwoteje bag ISO 9974

1CH4 / 1DH4 pou 45deg endikasyon fòm koud



PATI NO.

FIL

D1

OU RING

DIMANSYON

MPa

E

F

TUB OD

l1

L1

L2

S1

S2

S3

1CH9-12-10OG

M12X1.5

M10X1

6

O08.1X1.6

13

28

26.5

11

14

14

31.5L

1CH9-14-12OG

M14X1.5

M12X1.5

8

O09.3X2.4

15.5

30.5

32

14

17

17

1CH9-16-14OG

M16X1.5

M14X1.5

10

O11.3X2.4

17.5

32.5

34

16

19

19

1CH9-18-16OG

M18X1.5

M16X1.5

12

O13.3X2.4

19

34

36

19

22

22

1CH9-22-18OG

M22X1.5

M18X1.5

15

O15.3X2.4

22

37

39.5

22

27

24

1CH9-26-22OG

M26X1.5

M22X1.5

18

O19.3X2.4

25.5

42

43.5

27

32

27

1CH9-30-27OG

M30X2

M27X2

22

O23.5X3.0

29.3

45.8

50

30

36

32

16L

1CH9-36-33OG

M36X2

M33X2

28

O29.5X3.0

33.3

49.8

54

36

41

41

1DH9-14-12OG

M14X1.5

M12X1.5

6

O09.3X2.4

17.5

32.5

32

14

17

17

63S

1DH9-16-14OG

M16X1.5

M14X1.5

8

O11.3X2.4

18.7

33.7

34

16

19

19

1DH9-18-16OG

M18X1.5

M16X1.5

10

O13.3X2.4

19.5

36

36

19

22

22

1DH9-20-18OG

M20X1.5

M18X1.5

12

O15.3X2.4

19.5

36

37

19

24

24

1DH9-22-20OG

M22X1.5

M20X1.5

14

O17.3X2.4

23

41

40

22

27

27

1DH9-24-22OG

M24X1.5

M22X1.5

16

O19.3X2.4

24

42

37.5

24

30

27

1DH9-30-27OG

M30X2

M27X2

20

O23.5X3.0

28.3

49.8

50

30

36

32

40S

1DH9-36-33OG

M36X2

M33X2

25

O29.5X3.0

32.8

56.8

54

36

46

41

1DH9-42OG

M42X2

M42X2

30

O38.5X3.0

36.2

62.7

57.2

41

50

50

Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 1DH9-20-18OG / RN.


2. ekipman koud adaptab 1CO9 / 1DO9

24 DEV kòn fen / Reglabl Stud Fen O-bag ISO 11926

1CO4 / 1DO4 pou endikasyon sou fòm 45 koud degou



PATI NO.

FIL

TUB OD

DIMANSYON

MPa

E

F

D1

l1

L1

L2

S1

S2

S3

1CO9-12-04G

M12X1.5

7/16 "X20

6

13

28

27.2

11

14

17

31.5L

1CO9-14-06OG

M14X1.5

9/16 "X18

8

15.5

30.5

31.8

14

17

19

1CO9-16-06OG

M16X1.5

9/16 "X18

10

17.5

32.5

33.3

16

19

19

1CO9-18-08OG

M18X1.5

3/4 "X16

12

19

34

37.5

19

22

24

1CO9-22-10OG

M22X1.5

7/8 "X14

15

22

37

44

22

27

27

1CO9-22-08OG

M22X1.5

3/4 "X16

15

22

37

39.5

22

27

24

1CO9-26-12OG

M26X1.5

1.1 / 16 "X12

18

25.5

42

51

27

32

32

1CO9-30-12OG

M30X2

1.1 / 16 "X12

22

29.3

45.8

53.5

30

36

32

16L

1CO9-36-12OG

M36X2

1.1 / 16 "X12

28

33.5

47.8

57.5

36

41

41

1CO9-36-16OG

M36X2

1.5 / 16 "X12

28

33.3

49.8

57.5

36

41

41

1CO9-45-20OG

M45X2

1.5 / 8 "X12

35

39.2

60.7

63

48

50

50

1CO9-52-24OG

M52X2

1.7 / 8 "X12

42

44.8

67.8

70.5

55

60

55

1DO9-14-04OG

M14X1.5

7/16 "X20

6

17.5

32.5

30

14

17

17

63S

1DO9-16-06OG

M16X1.5

9/16 "X18

8

18.7

33.7

33.3

16

19

19

1DO9-18-06OG

M18X1.5

9/16 "X18

10

19.5

36

33.5

19

22

19

1DO9-18-08OG

M18X1.5

3/4 "X16

10

19.5

36

37.5

19

22

24

1DO9-20-08OG

M20X1.5

3/4 "X16

12

19.5

36

37.5

19

24

24

1DO9-22-10OG

M22X1.5

7/8 "X14

14

23

41

44

22

27

27

1DO9-24-10OG

M24X1.5

7/8 "X14

16

24

42.5

46.5

24

30

27

40S

1DO9-30-12OG

M30X2

1.1 / 16 "X12

20

28.3

49.8

53.5

30

36

32

1DO9-36-16OG

M36X2

1.5 / 16 "X12

25

32.8

56.8

57.5

36

46

41

1DO9-42-20OG

M42X2

1.5 / 8 "X12

30

36.2

62.7

59.5

41

50

50

1DO9-52-24OG

M52X2

1.7 / 8 "X12

38

45.8

76.8

70.5

55

60

55

31.5S

Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 1CO9-30-120G / RN.


3. ekipman koud reglabl 1CG9 / 1DG9

24 DEI kòn fen / Reglabl Stud Fen O-bag + Pwoteje Ring ISO 1179

1CG4 / 1DG4 pou endikasyon 45deg fòm koud



PATI NO.

FIL

TUB OD

DIMANSYON

MPa

E

F

D1

l1

L1

L2

S1

S2

S3

1CG9-12-02OG

M12X1.5

G1 / 8 "X28

6

13

28

26.2

11

14

14

31.5L

1CG9-14-04OG

M14X1.5

G1 / 4 "X19

8

15.5

30.5

31.3

14

17

19

1CG9-16-04OG

M16X1.5

G1 / 4 "X19

10

17.5

32.5

32.5

16

19

19

1CG9-16-06OG

M16X1.5

G3 / 8 "X19

10

17.5

32.5

35.8

16

19

22

1CG9-18-06OG

M18X1.5

G3 / 8 "X19

12

19

34

36.8

19

22

22

1CG9-22-08OG

M22X1.5

G1 / 2 "X14

15

22

37

43.2

22

27

27

1CG9-26-08OG

M26X1.5

G1 / 2 "X14

18

25.5

42

46

27

32

27

1CG9-26-12OG

M26X1.5

G3 / 4 "X14

18

25.5

42

49.3

27

32

32

1CG9-30-12OG

M30X2

G3 / 4 "X14

22

29.3

45.8

52

30

36

32

16L

1CG9-30-16OG

M30X2

G1 "X11

22

31.5

48

53

33

36

41

1CG9-36-16OG

M36X2

G1 "X11

28

33

49.8

56

36

41

41

1CG9-36-20OG

M36X2

G1.1 / 4 "X11

28

36

52.8

59

41

41

50

1CG9-45-20OG

M45X2

G1.1 / 4 "X11

35

39.2

60.7

63

48

50

50

1CG9-52-24OG

M52X2

G1.1 / 2 "X11

42

44.8

67.8

68.5

55

60

55

1DG9-14-04OG

M14X1.5

G1 / 4 "X19

6

17.5

32.5

31.3

14

17

19

63S

1DG9-16-04OG

M16X1.5

G1 / 4 "X19

8

18.7

33.7

32.5

16

19

19

1DG9-16-06OG

M16X1.5

G3 / 8 "X19

8

18.7

33.7

35.8

16

19

22

1DG9-18-06OG

M18X1.5

G3 / 8 "X19

10

19.5

36

36.8

19

22

22

1DG9-20-06OG

M20X1.5

G3 / 8 "X19

12

19.5

36

36.8

19

24

22

1DG9-22-08OG

M22X1.5

G1 / 2 "X14

14

23

41

43.2

22

27

27

1DG9-24-08OG

M24X1.5

G1 / 2 "X14

16

24

42.5

43

24

30

27

40S

1DG9-30-12OG

M30X2

G3 / 4 "X14

20

28

49.5

52

30

36

32

1DG9-36-16OG

M36X2

G1 "X11

25

32.8

56.8

56

36

46

41

1DG9-42-20OG

M42X2

G1.1 / 4 "X11

30

36.2

62.7

58

41

50

50

1DG9-52-24OG

M52X2

G1.1 / 2 "X11

38

45.8

76.8

68.5

55

60

55

31.5S

Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 1CG9-30-12OG / RN.

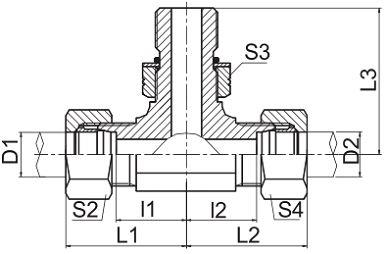

4. Kouri ekipman Tee adaptab ACCH / ADDH

24 deg kòn / 24 deg kòn / Reglabl Stud fen O-bag ISO 6149 Oswa O-bag + kenbe Ring ISO 9974



PATI NO.

FIL

D1, D2

OU RING

DIMANSYON

MPa

E, F

G

TUB OD

l1, l2

L1, L2

L3

S1

S2, S3

S4

ACCH-12-12-10OG

M12X1.5

M10X1

6

O08.1X1.6

13

28

26.5

11

14

14

31.5L

ACCH-14-14-12OG

M14X1.5

M12X1.5

8

O09.3X2.4

15.5

30.5

32

14

17

17

ACCH-16-16-14OG

M16X1.5

M14X1.5

10

O11.3X2.4

17.5

32.5

34

16

19

19

ACCH-18-18-16OG

M18X1.5

M16X1.5

12

O13.3X2.4

19

34

36

19

22

22

ACCH-22-22-18OG

M22X1.5

M18X1.5

15

O15.3X2.4

22

37

39.5

22

27

24

ACCH-26-26-22OG

M26X1.5

M22X1.5

18

O19.3X2.4

25.5

42

43.5

27

32

27

ACCH-30-30-27OG

M30X2

M27X2

22

O23.5X3.0

29.3

45.8

50

30

36

32

16L

ACCH-36-36-33OG

M36X2

M33X2

28

O29.2X3.0

33.3

49.8

54

36

41

41

ADDH-14-14-12OG

M14X1.5

M12X1.5

6

O09.3X2.4

17.5

32.5

32

14

17

17

63S

ADDH-16-16-14OG

M16X1.5

M14X1.5

8

O11.3X2.4

18.7

33.7

34

16

19

19

ADDH-18-18-16OG

M18X1.5

M16X1.5

10

O13.3X2.4

19.5

36

36

19

22

22

ADDH-20-20-18OG

M20X1.5

M18X1.5

12

O15.3X2.4

19.5

36

37

19

24

24

ADDH-24-24-22OG

M24X1.5

M22X1.5

16

O19.3X2.4

24

42

37.5

24

30

27

ADDH-30-30-27OG

M30X2

M27X2

20

O23.5X3.0

28.3

49.8

50

30

36

32

40S

ADDH-36-36-33OG

M36X2

M33X2

25

O29.2X3.0

32.8

56.8

54

36

46

41

ADDH-42-42-42OG

M42X2

M42X2

30

O38.5X3.0

36.2

62.7

57.2

41

50

50

Remak: 1. Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp ACCH-30-30-27OG / RN.
2. G se fen konekte ak ISO 9974-1 pò ak konekte ak ISO 6149-1 pò san yo pa kenbe bag.


5. Kouri ekipman TEE adaptab ACCO / ADDO

24 DE kòn / 24 deg kòn / Reglabl Stud Fen O-bag ISO 11926




PATI NO.

FIL

TUB OD

DIMANSYON

MPa

E, F

G

D1, D2

l1, l2

L1, L2

L3

S1

S2, S3

S4

ACCO-12-12-04G

M12X1.5

7/16 "X20

6

13

28

27.2

11

14

17

31.5L

ACCO-14-14-06OG

M14X1.5

9/16 "X18

8

15.5

30.5

31.8

14

17

19

ACCO-16-16-06OG

M16X1.5

9/16 "X18

10

17.5

32.5

33.3

16

19

19

ACCO-18-18-08OG

M18X1.5

3/4 "X16

12

19

34

37.5

19

22

24

ACCO-22-22-10OG

M22X1.5

7/8 "X14

15

22

37

44

22

27

27

ACCO-26-26-12OG

M26X1.5

1.1 / 16 "X12

18

25.5

42

51

27

32

32

ACCO-30-30-12OG

M30X2

1.1 / 16 "X12

22

29.3

45.8

53.5

30

36

32

16L

ACCO-36-36-16OG

M36X2

1.5 / 16 "X12

28

33.3

49.8

57.5

36

41

41

ACCO-45-45-20OG

M45X2

1.5 / 8 "X12

35

39.2

60.7

63

48

50

50

ADDO-14-14-04OG

M14X1.5

7/16 "X20

6

17.5

32.5

30

14

17

17

63S

ADDO-16-16-06OG

M16X1.5

9/16 "X18

8

18.7

33.7

33.3

16

19

19

ADDO-18-18-06OG

M18X1.5

9/16 "X18

10

19.5

36

33.5

19

22

19

ADDO-20-20-08OG

M20X1.5

3/4 "X16

12

19.5

36

37.5

19

24

24

ADDO-22-22-10OG

M22X1.5

7/8 "X14

14

23

41

44

22

27

27

ADDO-24-24-10OG

M24X1.5

7/8 "X14

16

24

42.5

46.5

24

30

27

40S

ADDO-30-30-12OG

M30X2

1.1 / 16 "X12

20

28.3

49.8

53.5

30

36

32

ADDO-36-36-16OG

M36X2

1.5 / 16 "X12

25

32.8

56.8

57.5

36

46

41

ADDO-42-42-20OG

M42X2

1.5 / 8 "X12

30

36.2

62.7

59.5

41

50

50

Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp ACCO-30-30-12OG / RN.


6. Kouri ekipman TEE Reglabl ACCG / ADDG

24 DEV kòn / 24 DE kòn / Reglabl Stud Fen O-bag + Pwoteje Ring ISO 1179



PATI NO.

FIL

TUB OD

DIMANSYON

MPa

E, F

G

D1, D2

l1, l2

L1, L2

L3

S1

S2, S3

S4

ACCG-12-12-02OG

M12X1.5

G1 / 8 "X28

6

13

28

26.2

11

14

14

31.5
L

ACCG-14-14-04OG

M14X1.5

G1 / 4 "X19

8

15.5

30.5

31.3

14

17

19

ACCG-16-16-04OG

M16X1.5

G1 / 4 "X19

10

17.5

32.5

32.5

16

19

19

ACCG-18-18-06OG

M18X1.5

G3 / 8 "X19

12

19

34

36.8

19

22

22

ACCG-22-22-08OG

M22X1.5

G1 / 2 "X14

15

22

37

43.2

22

27

27

ACCG-26-26-08OG

M26X1.5

G1 / 2 "X14

18

25.5

42

46.5

27

32

27

ACCG-30-30-12OG

M30X2

G3 / 4 "X14

22

29.3

45.8

52

30

36

32

16
L

ACCG-36-36-16OG

M36X2

G1 "X11

28

33.3

49.8

56

36

41

41

ACCG-45-45-20OG

M45X2

G1.1 / 4 "X11

35

39.2

60.7

63

48

50

50

ADD-14-14-04OG

M14X1.5

G1 / 4 "X19

6

17.5

32.5

31.3

14

17

19

63S

ADD-16-16-04OG

M16X1.5

G1 / 4 "X19

8

18.7

33.7

32.5

16

19

19

ADDG-18-18-06OG

M18X1.5

G3 / 8 "X19

10

19.5

36

36.8

19

22

22

ADDG-20-20-06OG

M20X1.5

G3 / 8 "X19

12

19.5

36

36.8

19

24

22

ADDG-22-22-08OG

M22X1.5

G1 / 2 "X14

14

23

41

43.2

22

27

27

ADDG-24-24-08OG

M24X1.5

G1 / 2 "X14

16

24

42.5

44

24

30

27

40S

ADDG-30-30-12OG

M30X2

G3 / 4 "X14

20

28.3

49.8

52

30

36

32

ADDG-36-36-16OG

M36X2

G1 "X11

25

32.8

56.8

56

36

46

41

ADDG-42-42-20OG

M42X2

G1.1 / 4 "X11

30

36.2

62.7

58

41

50

50

Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre No Pati nou an pou egzanp ACCG-18-18-06OG / RN.


7. Twous Branch Tee reglabl ACHC / ADHD

24 DEV kòn / Reglabl Stud Fen O-bag ISO 6149 oswa O-bag + Pwoteje bag ISO 9974/24 deg kòn




PATI NO.

FIL

D1, D2

O-Ring

DIMANSYON

MPa

E, G

F

TUB OD

l1, l2

L1, L2

L3

S1

S2, S4

S3

ACHC-12-10-12OG

M12X1.5

M10X1

6

O08.1X1.6

13

28

26.5

11

14

14

31.5L

ACHC-14-12-14OG

M14X1.5

M12X1.5

8

O09.3X2.4

15.5

30.5

32

14

17

17

ACHC-16-14-16OG

M16X1.5

M14X1.5

10

O11.3X2.4

17.5

32.5

34

16

19

19

ACHC-18-16-18OG

M18X1.5

M16X1.5

12

O13.3X2.4

19

34

36

19

22

22

ACHC-22-18-22OG

M22X1.5

M18X1.5

15

O15.3X2.4

22

37

39.5

22

27

24

ACHC-26-22-26OG

M26X1.5

M22X1.5

18

O19.3X2.4

25.5

42

43.5

27

32

27

ACHC-30-27-30OG

M30X2

M27X2

22

O23.5X3.0

29.3

45.8

50

30

36

32

16

ACHC-36-33-36OG

M36X2

M33X2

28

O29.2X3.0

33.3

49.8

54

36

41

41

ADHD-14-12-14OG

M14X1.5

M12X1.5

6

O09.3X2.4

17.5

32.5

32

14

17

17

63S

ADHD-16-14-16OG

M16X1.5

M14X1.5

8

O11.3X2.4

18.7

33.7

34

16

19

19

ADHD-18-16-18OG

M18X1.5

M16X1.5

10

O13.3X2.4

19.5

36

36

19

22

22

ADHD-20-18-20OG

M20X1.5

M18X1.5

12

O15.3X2.4

19.5

36

37

19

24

24

ADHD-24-22-24OG

M24X1.5

M22X1.5

16

O19.3X2.4

24

42

37.5

24

30

27

ADHD-30-27-30OG

M30X2

M27X2

20

O23.5X3.0

28.3

49.8

50

30

36

32

40S

ADHD-36-33-36OG

M36X2

M33X2

25

O29.2X3.0

32.8

56.8

54

36

46

41

ADHD-42-42-42OG

M42X2

M42X2

30

O38.5X3.0

36.2

62.7

57.2

41

50

50

Remak: 1. Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp ACHC-30-27-30OG / RN.
2. Se fen F konekte ak ISO 9974-1port ak konekte ak ISO 6149-1 pò san yo pa kenbe bag.


8. Twous Branch Tee adaptab ACOC / ADOD

24 deg kòn / Reglabl Stud fen O-bag ISO 11926/24 deg kòn



PATI NO.

FIL

TUB OD

DIMANSYON

MPa

E, G

F

D1, D2

l1, l2

L1, L2

L3

S1

S2, S4

S3

ACOC-12-04-12OG

M12X1.5

7/16 "X20

6

13

28

27.2

11

14

17

31.5L

ACOC-14-06-14OG

M14X1.5

9/16 "X18

8

15.5

30.5

31.8

14

17

19

ACOC-16-06-16OG

M16X1.5

9/16 "X18

10

17.5

32.5

33.3

16

19

19

ACOC-18-08-18OG

M18X1.5

3/4 "X16

12

19

34

37.5

19

22

24

ACOC-22-10-22OG

M22X1.5

7/8 "X14

15

22

37

44

22

27

27

ACOC-26-12-26G

M26X1.5

1.1 / 16 "X12

18

25.5

42

51

27

32

32

ACOC-30-12-30OG

M30X2

1.1 / 16 "X12

22

29.3

45.8

53.5

30

36

32

16L

ACOC-36-16-36OG

M36X2

1.5 / 16 "X12

28

33.3

49.8

57.5

36

41

41

ACOC-45-20-45OG

M45X2

1.5 / 8 "X12

35

39.2

60.7

63

48

50

50

ADOD-14-04-14OG

M14X1.5

7/16 "X20

6

17.5

32.5

30

14

17

17

63S

ADOD-16-06-16OG

M16X1.5

9/16 "X18

8

18.7

33.7

33.3

16

19

19

ADOD-18-06-18OG

M18X1.5

9/16 "X18

10

19.5

36

33.5

19

22

19

ADOD-20-08-20OG

M20X1.5

3/4 "X16

12

19.5

36

37.5

19

24

24

ADOD-22-10-22OG

M22X1.5

7/8 "X14

14

23

41

44

22

27

27

ADOD-24-10-24OG

M24X1.5

7/8 "X14

16

24

42.5

46.5

24

30

27

40S

ADOD-30-12-30OG

M30X2

1.1 / 16 "X12

20

28.3

49.8

53.5

30

36

32

ADOD-36-16-36OG

M36X2

1.5 / 16 "X12

25

32.8

56.8

57.5

36

46

41

ADOD-42-20-42OG

M42X2

1.5 / 8 "X12

30

36.2

62.7

59.5

41

50

50

Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp ACOC-30-12-30OG / RN.


9. Twous Branch Tee adaptab ACGC / ADGD

24 DEV kòn / Reglabl Stud Fen O-bag + Pwoteje Ring ISO 1179/24 deg kòn



PATI NO.

FIL

TUB OD

DIMANSYON

MPa

E, G

F

D1, D2

l1, l2

L1, L2

L3

S1

S2, S4

S3

ACGC-12-02-12OG

M12X1.5

G1 / 8 "X28

6

13

28

26.2

11

14

14

31.5L

ACGC-14-04-14OG

M14X1.5

G1 / 4 "X19

8

15.5

30.5

31.3

14

17

19

ACGC-16-04-16OG

M16X1.5

G1 / 4 "X19

10

17.5

32.5

32.5

16

19

19

ACGC-18-06-18OG

M18X1.5

G3 / 8 "X19

12

19

34

36.8

19

22

22

ACGC-22-08-22OG

M22X1.5

G1 / 2 "X14

15

22

37

43.2

22

27

27

ACGC-26-08-26G

M26X1.5

G1 / 2 "X14

18

25.5

42

46.5

27

32

27

ACGC-30-12-30OG

M30X2

G3 / 4 "X14

22

29.3

45.8

52

30

36

32

16L

ACGC-36-16-36OG

M36X2

G1 "X11

28

33.3

49.8

56

36

41

41

ACGC-45-20-45OG

M45X2

G1.1 / 4 "X11

35

39.2

60.7

63

48

50

50

ADGD-14-04-14OG

M14X1.5

G1 / 4 "X19

6

17.5

32.5

31.3

14

17

19

63S

ADGD-16-04-16OG

M16X1.5

G1 / 4 "X19

8

18.7

33.7

32.5

16

19

19

ADGD-18-06-18OG

M18X1.5

G3 / 8 "X19

10

19.5

36

36.8

19

22

22

ADGD-20-06-20OG

M20X1.5

G3 / 8 "X19

12

19.5

36

36.8

19

24

22

ADGD-22-08-22OG

M22X1.5

G1 / 2 "X14

14

23

41

43.2

22

27

27

ADGD-24-08-24OG

M24X1.5

G1 / 2 "X14

16

24

42.5

44

24

30

27

40S

ADGD-30-12-30OG

M30X2

G3 / 4 "X14

20

28.3

49.8

52

30

36

32

ADGD-36-16-36OG

M36X2

G1 "X11

25

32.8

56.8

56

36

46

41

ADGD-42-20-42OG

M42X2

G1.1 / 4 "X11

30

36.2

62.7

58

41

50

50

Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp ACGC-18-06-18OG / RN.


Baj popilè: DIN Fittings reglabl, Lachin, manifaktirè, Swèd, koutim, kwiv, swagelok, Parker, Stauff, Brennan, asye pur

Ou ka renmen tou
Voye rechèch
Pwodwi kategori
Dènye pwodwi yo
Kontakte nou

(0/10)

clearall
