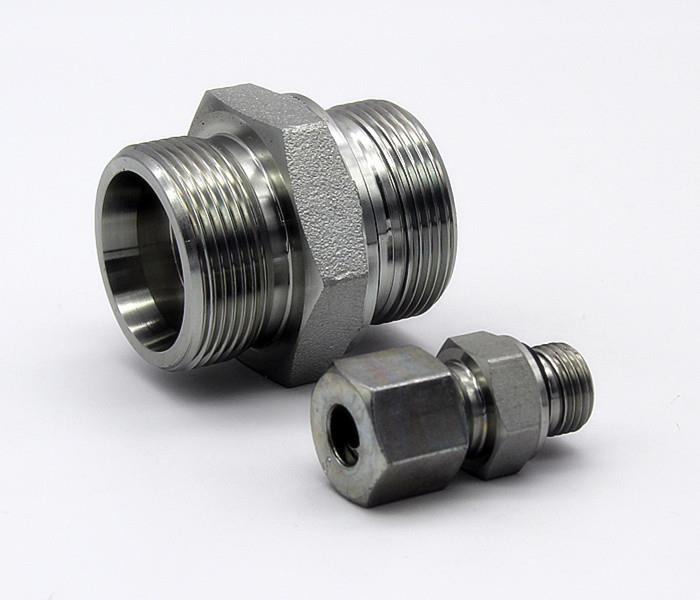

1. Adaptè adaptè DIN yo gen metrik gason stud, stud BSPP gason, UNF gason stud, kalite poze sele yo gen Eolastic sele ED, O-bag, O-bag ak repwan bag, Metal koupe figi, sele machin pou lave ak fil taper. Adaptè DIN pral konekte nan fen pò fi.
2. Metòd pou poze sele, sèks gason an pral matche ak pò fi tankou desen sa yo:
Fermeture plat stud figi
 |  |
 |  |
O-bag Seals nan chamfer
Taper Thread Sealing
3. Estanda nan poto gason pou tout pò:
● DIN tiyo ak ekipman adaptè ki disponib ak plizyè kalite poto fil paralèl DIN metrik plat figi (ISO 9974); BSPP figi plat (ISO 1179); Fil dwat SAE (SAE J1926 / ISO 11926); ISO (ISO 6149); JIS (JIS B2351).
● DIN ak ekipman ak kon kouch fil fil: NPT fil ANSI / ASME B 1.20.1-1983; Fil BSPT ISO 7 / BS 21 / DIN 2999-1; Metrik fil metrik DIN 3852-1, pous Pousyè DIN 3852-2.
1. Idwolik Fittings Adapters 1CM / 1DM WD Seri
DIN 24 ° kòn fen / Gason metrik fil ED (ISO 9974)
PATI NO. | FIL | TUB OD | DIMANSYON | MPa | |||||
E | F | D1 | B | l1 | L1 | S1 | S2 | ||
1CM-12-10WD | M12X1.5 | M10X1 | 6 | 8 | 8.5 | 23 | 14 | 14 | 31.5 L |
1CM-14-12WD | M14X1.5 | M12X1.5 | 8 | 12 | 10 | 25 | 17 | 17 | |
1CM-16-12WD | M16X1.5 | M12X1.5 | 10 | 12 | 11 | 25 | 17 | 19 | |
1CM-16-14WD | M16X1.5 | M14X1.5 | 10 | 12 | 11 | 26 | 19 | 19 | |
1CM-16-18WD | M16X1.5 | M18X1.5 | 10 | 12 | 12.5 | 27 | 24 | 19 | |
1CM-18-16WD | M18X1.5 | M16X1.5 | 12 | 12 | 12.5 | 27 | 22 | 22 | |
1CM-18WD | M18X1.5 | M18X1.5 | 12 | 12 | 12.5 | 27 | 24 | 22 | |
1CM-18-22WD | M18X1.5 | M22X1.5 | 12 | 14 | 14 | 29 | 27 | 22 | |
1CM-22-18WD | M22X1.5 | M18X1.5 | 15 | 12 | 13.5 | 29 | 24 | 27 | |
1CM-22WD | M22X1.5 | M22X1.5 | 15 | 14 | 15 | 30 | 27 | 27 | |
1CM-26-22WD | M26X1.5 | M22X1.5 | 18 | 14 | 14.5 | 31 | 27 | 32 | |
1CM-30-26WD | M30X2 | M26X1.5 | 22 | 16 | 16.5 | 33 | 32 | 36 | 16L |
1CM-30-27WD | M30X2 | M27X2 | 22 | 16 | 16.5 | 33 | 32 | 36 | |
1CM-36-33WD | M36X2 | M33X2 | 28 | 18 | 17.5 | 34 | 41 | 41 | |
1CM-45-42WD | M45X2 | M42X2 | 35 | 20 | 17.5 | 39 | 50 | 50 | |
1CM-52-48WD | M52X2 | M48X2 | 42 | 22 | 19 | 42 | 55 | 60 | |
1DM-14-12WD | M14X1.5 | M12X1.5 | 6 | 12 | 13 | 28 | 17 | 17 | 63S |
1DM-16-14WD | M16X1.5 | M14X1.5 | 8 | 12 | 15 | 30 | 19 | 19 | |
1DM-18-16WD | M18X1.5 | M16X1.5 | 10 | 12 | 15 | 31 | 22 | 22 | |
1DM-20-18WD | M20X1.5 | M18X1.5 | 12 | 12 | 17 | 33 | 24 | 24 | |
1DM-22-20WD | M22X1.5 | M20X1.5 | 14 | 14 | 19 | 37 | 27 | 27 | |
1DM-24-22WD | M24X1.5 | M22X1.5 | 16 | 14 | 18.5 | 37 | 27 | 30 | 40S |
1DM-30-27WD | M30X2 | M27X2 | 20 | 16 | 20.5 | 42 | 32 | 36 | |
1DM-36-33WD | M36X2 | M33X2 | 25 | 18 | 23 | 47 | 41 | 46 | |
1DM-42WD | M42X2 | M42X2 | 30 | 20 | 23.5 | 50 | 50 | 50 | |
1DM-52-48WD | M52X2 | M48X2 | 38 | 22 | 26 | 57 | 55 | 60 | 31.5S |
Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 1DM-20-18WD / RN. | |||||||||
2. Idwolik Fittings Adapters 1CB / 1DB WD Seri
DIN 24 ° kòn fen / Gason BSPP fil ED-sele (ISO 1179)
PATI NO. | FIL | TUB OD | DIMANSYON | MPa | |||||
E | F | D1 | B | l1 | L1 | S1 | S2 | ||
1CB-12-02WD | M12X1.5 | G1 / 8 "X28 | 6 | 8 | 8.5 | 23.5 | 14 | 14 | 31.5L |
1CB-12-04WD | M12X1.5 | G1 / 4 "X19 | 6 | 12 | 10 | 25 | 19 | 14 | |
1CB-12-06WD | M12X1.5 | G3 / 8 "X19 | 6 | 12 | 11.5 | 26.5 | 22 | 14 | |
1CB-14-02WD | M14X1.5 | G1 / 8 "X28 | 8 | 8 | 9 | 24 | 14 | 17 | |
1CB-14-04WD | M14X1.5 | G1 / 4 "X19 | 8 | 12 | 10 | 24 | 19 | 17 | |
1CB-14-06WD | M14X1.5 | G3 / 8 "X19 | 8 | 12 | 11 | 26 | 22 | 17 | |
1CB-16-04WD | M16X1.5 | G1 / 4 "X19 | 10 | 12 | 11 | 24.5 | 19 | 19 | |
1CB-16-06WD | M16X1.5 | G3 / 8 "X19 | 10 | 12 | 12.5 | 26 | 22 | 19 | |
1CB-16-08WD | M16X1.5 | G1 / 2 "X14 | 10 | 14 | 13 | 28 | 27 | 19 | |
1CB-18-04WD | M18X1.5 | G1 / 4 "X19 | 12 | 12 | 12 | 27 | 19 | 22 | |
1CB-18-06WD | M18X1.5 | G3 / 8 "X19 | 12 | 12 | 12.5 | 26 | 22 | 22 | |
1CB-18-08WD | M18X1.5 | G1 / 2 "X14 | 12 | 14 | 14 | 28 | 27 | 22 | |
1CB-22-04WD | M22X1.5 | G1 / 4 "X19 | 15 | 12 | 13 | 28 | 24 | 27 | |
1CB-22-06WD | M22X1.5 | G3 / 8 "X19 | 15 | 12 | 13.5 | 28 | 24 | 27 | |
1CB-22-08WD | M22X1.5 | G1 / 2 "X14 | 15 | 14 | 14 | 29 | 27 | 27 | |
1CB-22-12WD | M22X1.5 | G3 / 4 "X14 | 15 | 16 | 15 | 29 | 32 | 27 | |
1CB-26-08WD | M26X1.5 | G1 / 2 "X14 | 18 | 14 | 14.5 | 31 | 27 | 32 | |
1CB-26-12WD | M26X1.5 | G3 / 4 "X14 | 18 | 16 | 14.5 | 31 | 32 | 32 | |
1CB-30-12WD | M30X2 | G3 / 4 "X14 | 22 | 16 | 16.5 | 33 | 32 | 36 | 16L |
1CB-36-16WD | M36X2 | G1 "X11 | 28 | 18 | 17.5 | 34 | 41 | 41 | |
1CB-45-20WD | M45X2 | G1.1 / 4 "X11 | 35 | 20 | 17.5 | 39 | 50 | 50 | |
1CB-52-24WD | M52X2 | G1.1 / 2 "X11 | 42 | 22 | 19 | 42 | 55 | 60 | |
1DB-14-04WD | M14X1.5 | G1 / 4 "X19 | 6 | 12 | 15 | 19 | 17 | 63S | |
1DB-16-04WD | M16X1.5 | G1 / 4 "X19 | 8 | 12 | 15 | 30 | 19 | 19 | |
1DB-16-06WD | M16X1.5 | G3 / 8 "X19 | 8 | 12 | 15.5 | 30 | 22 | 19 | |
1DB-18-04WD | M18X1.5 | G1 / 4 "X19 | 10 | 12 | 14.5 | 31 | 19 | 22 | |
1DB-18-06WD | M18X1.5 | G3 / 8 "X19 | 10 | 12 | 14.5 | 31 | 22 | 22 | |
1DB-18-08WD | M18X1.5 | G1 / 2 "X14 | 10 | 14 | 17.5 | 34 | 27 | 22 | |
1DB-20-04WD | M20X1.5 | G1 / 4 "X19 | 12 | 12 | 16.5 | 33 | 22 | 24 | |
1DB-20-06WD | M20X1.5 | G3 / 8 "X19 | 12 | 12 | 15 | 33 | 22 | 24 | |
1DB-20-08WD | M20X1.5 | G1 / 2 "X14 | 12 | 14 | 17.5 | 34 | 27 | 24 | |
1DB-22-08WD | M22X1.5 | G1 / 2 "X14 | 14 | 14 | 19 | 37 | 27 | 27 | |
1DB-24-06WD | M24X1.5 | G3 / 8 "X19 | 16 | 12 | 18 | 36.5 | 27 | 30 | 40S |
1DB-24-08WD | M24X1.5 | G1 / 2 "X14 | 16 | 14 | 18.5 | 37 | 27 | 30 | |
1DB-24-12WD | M24X1.5 | G3 / 4 "X14 | 16 | 16 | 20.5 | 39 | 32 | 30 | |
1DB-30-12WD | M30X2 | G3 / 4 "X14 | 20 | 16 | 20.5 | 42 | 32 | 36 | |
1DB-36-08WD | M36X2 | G1 / 2 "X14 | 25 | 14 | 23 | 47 | 41 | 46 | |
1DB-36-12WD | M36X2 | G3 / 4 "X14 | 25 | 16 | 23 | 47 | 41 | 46 | |
1DB-36-16WD | M36X2 | G1 "X11 | 25 | 18 | 23 | 47 | 41 | 46 | |
1DB-42-20WD | M42X2 | G1.1 / 4 "X11 | 30 | 20 | 23.5 | 50 | 50 | 50 | |
1DB-52-24WD | M52X2 | G1.1 / 2 "X11 | 38 | 22 | 26 | 57 | 55 | 60 | 31.5S |
Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 1DB-20-08WD / RN. | |||||||||
3. Idwolik Fittings Adapters 1CO / 1DO Seri
DIN 24 ° kòn fen / Gason UNF / Nasyonzini fil w O-bag (ISO 11926)
PATI NO. | FIL | TUB OD | DIMANSYON | MPa | |||||
E | F | D1 | B | l1 | L1 | S1 | S2 | ||
1CO-14-04 | M14X1.5 | 7/16 "X20 | 8 | 9 | 10 | 25 | 17 | 17 | 31.5 L |
1CO-16-04 | M16X1.5 | 7/16 "X20 | 10 | 9 | 11 | 26 | 17 | 19 | |
1CO-18-06 | M18X1.5 | 9/16 "X18 | 12 | 10 | 11 | 26 | 19 | 22 | |
1CO-18-08 | M18X1.5 | 3/4 "X16 | 12 | 11 | 13 | 28 | 24 | 22 | |
1CO-18-10 | M18X1.5 | 7/8 "X14 | 12 | 12.7 | 14.3 | 29 | 27 | 22 | |
1CO-22-08 | M22X1.5 | 3/4 "X16 | 15 | 11 | 14 | 29 | 24 | 27 | |
1CO-22-10 | M22X1.5 | 7/8 "X14 | 15 | 12.7 | 15.3 | 30 | 27 | 27 | |
1CO-22-12 | M22X1.5 | 1.1 / 16 "X12 | 15 | 15.09 | 11.91 | 30 | 32 | 27 | |
1CO-26-08 | M26X1.5 | 3/4 "X16 | 18 | 11 | 14.5 | 31 | 27 | 32 | |
1CO-26-10 | M26X1.5 | 7/8 "X14 | 18 | 12.7 | 14.8 | 31 | 27 | 32 | |
1CO-30-08 | M30X2 | 3/4 "X16 | 18 | 11.13 | 13.87 | 33 | 32 | 36 | 16L |
1CO-30-10 | M30X2 | 7/8 "X14 | 22 | 12.7 | 16.8 | 33 | 32 | 36 | |
1CO-30-12 | M30X2 | 1.1 / 16 "X12 | 22 | 15 | 16.5 | 33 | 32 | 36 | |
1CO-30-16 | M30X2 | 1.5 / 16 "X12 | 22 | 15 | 17.5 | 34 | 41 | 36 | |
1CO-36-12 | M36X2 | 1.1 / 16 "X12 | 28 | 15.09 | 14.41 | 34 | 41 | 41 | |
1CO-36-16 | M36X2 | 1.5 / 16 "X12 | 28 | 15 | 17.5 | 34 | 41 | 41 | |
1CO-45-16 | M45X2 | 1.5 / 16 "X12 | 35 | 15 | 17.5 | 39 | 46 | 50 | |
1CO-45-20 | M45X2 | 1.5 / 8 "X12 | 35 | 15.09 | 16.41 | 39 | 50 | 50 | |
1CO-52-20 | M52X2 | 1.5 / 8 "X12 | 42 | 15.09 | 15.91 | 42 | 55 | 60 | |
1DO-16-04 | M16X1.5 | 7/16 "X20 | 8 | 9 | 15 | 30 | 17 | 19 | 63S |
1DO-18-06 | M18X1.5 | 9/16 "X18 | 10 | 10 | 14.5 | 31 | 19 | 22 | |
1DO-20-06 | M20X1.5 | 9/16 "X18 | 12 | 10 | 14.5 | 31 | 22 | 24 | |
1DO-20-08 | M20X1.5 | 3/4 "X16 | 12 | 11 | 17.5 | 34 | 24 | 24 | |
1DO-24-08 | M24X1.5 | 3/4 "X16 | 16 | 11 | 15.5 | 34 | 24 | 30 | 40S |
1DO-24-10 | M24X1.5 | 7/8 "X14 | 16 | 12.7 | 18.8 | 37 | 27 | 30 | |
1DO-30-08 | M30X2 | 3/4 "X16 | 20 | 11 | 20.5 | 42 | 32 | 36 | |
1DO-30-10 | M30X2 | 7/8 "X14 | 20 | 12.7 | 20.8 | 42 | 32 | 36 | |
1DO-30-12 | M30X2 | 1.1 / 16 "X12 | 20 | 15 | 20.5 | 42 | 32 | 36 | |
1DO-36-12 | M36X2 | 1.1 / 16 "X12 | 25 | 15.09 | 19.91 | 47 | 41 | 46 | |
1DO-36-16 | M36X2 | 1.5 / 16 "X12 | 25 | 15 | 23 | 47 | 41 | 46 | |
1DO-42-16 | M42X2 | 1.5 / 16 "X12 | 30 | 15 | 23.5 | 50 | 46 | 50 | |
1DO-42-20 | M42X2 | 1.5 / 8 "X12 | 30 | 15 | 23.5 | 50 | 50 | 50 | |
1DO-52-20 | M52X2 | 1.5 / 8 "X12 | 38 | 15.09 | 22.9 | 53.9 | 55 | 60 | 31.5S |
Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 1C9-30RN. | |||||||||
4. Idwolik Fittings Adapters 1CB / 1DB Seri
DIN 24 ° kòn fen / Gason BSP fil Boukle Bouche DIN 3852-2
PATI NO. | FIL | TUB OD | DIMANSYON | MPa | ||||||
E | F | D1 | B | l1 | L1 | L | S1 | S2 | ||
1CB-12-02 | M12X1.5 | G1 / 8 "X28 | 6 | 10 | 8 | 23 | 24 | 14 | 14 | 31.5L |
1CB-12-04 | M12X1.5 | G1 / 4 "X19 | 6 | 12 | 9 | 24 | 28 | 19 | 14 | |
1CB-14-02 | M14X1.5 | G1 / 8 "X28 | 8 | 10 | 8 | 23 | 25 | 14 | 17 | |
1CB-14-04 | M14X1.5 | G1 / 4 "X19 | 8 | 12 | 9 | 25 | 28 | 19 | 17 | |
1CB-14-06 | M14X1.5 | G3 / 8 "X19 | 8 | 13.5 | 9 | 24 | 28.5 | 22 | 17 | |
1CB-16-04 | M16X1.5 | G1 / 4 "X19 | 10 | 12 | 10 | 25 | 28 | 19 | 19 | |
1CB-16-06 | M16X1.5 | G3 / 8 "X19 | 10 | 13.5 | 12.5 | 25 | 33 | 22 | 19 | |
1CB-16-08 | M16X1.5 | G1 / 2 "X14 | 10 | 16 | 11 | 26 | 32 | 27 | 19 | |
1CB-18-04 | M18X1.5 | G1 / 4 "X19 | 12 | 12 | 10 | 25 | 29 | 19 | 22 | |
1CB-18-06 | M18X1.5 | G3 / 8 "X19 | 12 | 13.5 | 10 | 25 | 30.5 | 22 | 22 | |
1CB-18-08 | M18X1.5 | G1 / 2 "X14 | 12 | 16 | 11 | 26 | 33 | 27 | 22 | |
1CB-18-12 | M18X1.5 | G3 / 4 "X14 | 12 | 18.5 | 11 | 26 | 36.5 | 32 | 22 | |
1CB-22-06 | M22X1.5 | G3 / 8 "X19 | 15 | 13.5 | 11 | 26 | 31.5 | 24 | 27 | |
1CB-22-08 | M22X1.5 | G1 / 2 "X14 | 15 | 16 | 12 | 27 | 34 | 27 | 27 | |
1CB-26-08 | M26X1.5 | G1 / 2 "X14 | 18 | 16 | 11.5 | 28 | 35 | 27 | 32 | |
1CB-26-12 | M26X1.5 | G3 / 4 "X14 | 18 | 18.5 | 11.5 | 28 | 35.5 | 32 | 32 | |
1CB-30-12 | M30X2 | G3 / 4 "X14 | 22 | 18.5 | 13.5 | 30 | 39.5 | 32 | 36 | 16L |
1CB-36-16 | M36X2 | G1 "X11 | 28 | 20.5 | 14.5 | 31 | 42.5 | 41 | 41 | |
1CB-45-20 | M45X2 | G1.1 / 4 "X11 | 35 | 20.5 | 15.5 | 37 | 45.5 | 50 | 50 | |
1CB-52-24 | M52X2 | G1.1 / 2 "X11 | 42 | 23 | 16 | 39 | 50 | 55 | 60 | |
1DB-14-04 | M14X1.5 | G1 / 4 "X19 | 6 | 12 | 13 | 28 | 30 | 19 | 17 | 63S |
1DB-16-04 | M16X1.5 | G1 / 4 "X19 | 8 | 12 | 13 | 28 | 32 | 19 | 19 | |
1DB-16-06 | M16X1.5 | G3 / 8 "X19 | 8 | 13.5 | 15 | 32 | 35.5 | 22 | 19 | |
1DB-18-04 | M18X1.5 | G1 / 4 "X19 | 10 | 12 | 12.5 | 29 | 32 | 19 | 22 | |
1DB-18-06 | M18X1.5 | G3 / 8 "X19 | 10 | 13.5 | 14.5 | 31 | 33.5 | 22 | 22 | |
1DB-18-08 | M18X1.5 | G1 / 2 "X14 | 10 | 16 | 14.5 | 31 | 36 | 27 | 22 | |
1DB-20-04 | M20X1.5 | G1 / 4 "X19 | 12 | 12 | 14.5 | 31 | 34 | 22 | 24 | |
1DB-20-06 | M20X1.5 | G3 / 8 "X19 | 12 | 13.5 | 14.5 | 31 | 35.5 | 22 | 24 | |
1DB-20-08 | M20X1.5 | G1 / 2 "X14 | 12 | 16 | 14.5 | 31 | 38 | 27 | 24 | |
1DB-22-08 | M22X1.5 | G1 / 2 "X14 | 14 | 16 | 16 | 34 | 40 | 27 | 27 | |
1DB-24-06 | M24X1.5 | G3 / 8 "X19 | 16 | 13.5 | 15.5 | 34 | 37.5 | 27 | 30 | 40S |
1DB-24-08 | M24X1.5 | G1 / 2 "X14 | 16 | 16 | 15.5 | 34 | 40 | 27 | 30 | |
1DB-24-12 | M24X1.5 | G3 / 4 "X14 | 16 | 18.5 | 17.5 | 36 | 44.5 | 32 | 30 | |
1DB-30-12 | M30X2 | G3 / 4 "X14 | 20 | 18.5 | 17.5 | 39 | 48.5 | 32 | 36 | |
1DB-36-08 | M36X2 | G1 / 2 "X14 | 25 | 16 | 19 | 43 | 48 | 38 | 46 | |
1DB-36-12 | M36X2 | G3 / 4 "X14 | 25 | 18.5 | 19 | 43 | 50.5 | 38 | 46 | |
1DB-36-16 | M36X2 | G1 "X11 | 25 | 20.5 | 20 | 44 | 52.5 | 41 | 46 | |
1DB-42-20 | M42X2 | G1.1 / 4 "X11 | 30 | 20.5 | 21.5 | 48 | 54.5 | 50 | 50 | |
1DB-52-24 | M52X2 | G1.1 / 2 "X11 | 38 | 23 | 23 | 54 | 62 | 55 | 60 | 31.5S |
Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 1DB-20-08RN. | ||||||||||
5. Idwolik Fittings Adapters 1CH / 1DH Seri
DIN 24 ° kòn fen / Gason Metrik fil O-bag DIN ISO 6149 stud
PATI NO. | FIL | TUB OD | OU RING | DIMANSYON | MPa | |||||
E | F | D1 | B | l1 | L1 | S1 | S2 | |||
1CH-12-10 | M12X1.5 | M10X1 | 6 | O08.1X1.6 | 8.5 | 9.5 | 23 | 14 | 14 | 31.5L |
1CH-14 | M14X1.5 | M14X1.5 | 8 | O11.3X2.4 | 11 | 10 | 25 | 19 | 17 | |
1CH-14-12 | M14X1.5 | M12X1.5 | 8 | O09.3X2.4 | 11 | 10 | 25 | 17 | 17 | |
1CH-16-14 | M16X1.5 | M14X1.5 | 10 | O11.3X2.4 | 11 | 13 | 26 | 19 | 19 | |
1CH-18-14 | M18X1.5 | M14X1.5 | 12 | O11.3X2.4 | 11 | 11 | 25.5 | 19 | 22 | |
1CH-14-18 | M14X1.5 | M18X1.5 | 8 | O15.3X2.4 | 12.5 | 11.5 | 26.5 | 24 | 17 | |
1CH-16 | M16X1.5 | M16X1.5 | 10 | O13.3X2.4 | 11.5 | 13 | 28 | 22 | 19 | |
1CH-16-18 | M16X1.5 | M18X1.5 | 10 | O15.3X2.4 | 12.5 | 12.5 | 28 | 24 | 19 | |
1CH-18-16 | M18X1.5 | M16X1.5 | 12 | O13.3X2.4 | 11.5 | 12 | 27 | 22 | 22 | |
1CH-22-16 | M22X1.5 | M16X1.5 | 15 | O13.3X2.4 | 11.5 | 13.5 | 29.5 | 24 | 27 | |
1CH-22-18 | M22X1.5 | M18X1.5 | 15 | O15.3X2.4 | 12.5 | 13.5 | 29 | 24 | 27 | |
1CH-16-22 | M16X1.5 | M22X1.5 | 10 | O19.3X2.4 | 13 | 14 | 29.5 | 27 | 19 | |
1CH-22-20 | M22X1.5 | M20X1.5 | 15 | O17.3X2.4 | 12 | 15 | 30.5 | 27 | 27 | |
1CH-22 | M22X1.5 | M22X1.5 | 15 | O19.3X2.4 | 13 | 15 | 31 | 27 | 27 | |
1CH-26-22 | M26X1.5 | M22X1.5 | 18 | O19.3X2.4 | 13 | 14.5 | 31 | 27 | 32 | |
1CH-26 | M26X1.5 | M26X1.5 | 18 | O23.5X3.0 | 13.5 | 13.5 | 31 | 32 | 32 | |
1CH-26-27 | M26X1.5 | M27X2 | 18 | O23.5X3.0 | 16 | 14.5 | 32 | 32 | 32 | |
1CH-26-33 | M26X1.5 | M33X2 | 18 | O29.5X3.0 | 16 | 15.5 | 33 | 41 | 32 | |
1CH-30-22 | M30X2 | M22X1.5 | 22 | O19.3X2.4 | 13 | 17.5 | 33 | 32 | 41 | 16L |
1CH-30-27 | M30X2 | M27X2 | 22 | O23.5X3.0 | 16 | 16.5 | 33 | 32 | 36 | |
1CH-30 | M30X2 | M30X2 | 22 | O26.5X3.0 | 16 | 17.5 | 33 | 36 | 36 | |
1CH-36-27 | M36X2 | M27X2 | 28 | O23.5X3.0 | 16 | 17.5 | 34 | 41 | 41 | |
1CH-36-33 | M36X2 | M33X2 | 28 | O29.5X3.0 | 16 | 17.5 | 34 | 41 | 41 | |
1CH-36-42 | M36X2 | M42X2 | 28 | O38.5X3.0 | 16 | 18.5 | 35 | 50 | 41 | |
1CH-45-33 | M45X2 | M33X2 | 35 | O29.5X3.0 | 16 | 17.5 | 37 | 46 | 50 | |
1CH-45-42 | M45X2 | M42X2 | 35 | O38.5X3.0 | 16 | 17.5 | 37 | 50 | 50 | |
1CH-52-48 | M52X2 | M48X2 | 42 | O44.5X3.0 | 17.5 | 19 | 55 | 60 | ||
1DH-14 | M14X1.5 | M14X1.5 | 6 | O11.3X2.4 | 11 | 15 | 28 | 19 | 17 | 63S |
1DH-14-12 | M14X1.5 | M12X1.5 | 6 | O09.3X2.4 | 11 | 13 | 28 | 17 | 17 | |
1DH-16-14 | M16X1.5 | M14X1.5 | 8 | O11.3X2.4 | 11 | 15 | 30 | 19 | 19 | |
1DH-18-16 | M18X1.5 | M16X1.5 | 10 | O13.3X2.4 | 11.5 | 15 | 31 | 22 | 22 | |
1DH-20-14 | M20X1.5 | M14X1.5 | 12 | O11.3X2.4 | 11 | 15 | 31 | 22 | 24 | |
1DH-20-16 | M20X1.5 | M16X1.5 | 12 | O13.3X2.4 | 11.5 | 15 | 31 | 22 | 24 | |
1DH-20-18 | M20X1.5 | M18X1.5 | 12 | O15.3X2.4 | 12.5 | 17 | 33 | 24 | 24 | |
1DH-20-22 | M20X1.5 | M22X1.5 | 12 | O19.3X2.4 | 13 | 17.5 | 35 | 27 | 30 | |
1DH-24-22 | M24X1.5 | M22X1.5 | 16 | O19.3X2.4 | 13 | 18.5 | 37 | 27 | 30 | 40S |
1DH-30 | M30X2 | M30X2 | 20 | O26.5X3.0 | 16 | 20.5 | 42 | 36 | 36 | |
1DH-30-27 | M30X2 | M27X2 | 20 | O23.5X3.0 | 16 | 20.5 | 42 | 32 | 36 | |
1DH-30-33 | M30X2 | M33X2 | 20 | 16 | 22.5 | 42 | 41 | 36 | ||
1DH-36-27 | M36X2 | M27X2 | 25 | O23.5X3.0 | 16 | 23 | 47 | 41 | 46 | |
1DH-36-33 | M36X2 | M33X2 | 25 | O29.5X3.0 | 16 | 23 | 47 | 41 | 46 | |
1DH-42 | M42X2 | M42X2 | 30 | O38.5X3.0 | 16 | 23.5 | 50 | 50 | 50 | |
1DH-42-48 | M42X2 | M48X2 | 30 | O44.5X3.0 | 17.5 | 26.5 | 52 | 55 | 50 | |
6. Idwolik Fittings Adapters 1CT / 1DT Seri
DIN 24 ° kòn fen / Gason kout konik woulib fil (DIN 3852-2, kalite C)
PATI NO. | FIL | TUB OD | DIMANSYON | MPa | ||||
E | F | D | l1 | L1 | S1 | S2 | ||
1CT-12-02SP | M12x1.5 | R1 / 8 "x28 | 6 | 13 | 28 | 12 | 14 | 31.5L |
1CT-12-04SP | M12x1.5 | R1 / 4 "x19 | 8 | 8 | 14 | 14 | ||
1CT-14-04SP | M14x1.5 | R1 / 4 "x19 | 8 | 16.5 | 31.5 | 14 | 17 | |
1CT-14-06SP | M14x1.5 | R3 / 8 "x19 | 8 | 17.6 | 32.6 | 19 | 17 | |
1CT-16-04SP | M16x1.5 | R1 / 4 "x19 | 10 | 17.5 | 32.5 | 17 | 19 | |
1CT-16-06SP | M16x1.5 | R3 / 8 "x19 | 10 | 18.6 | 33.6 | 19 | 19 | |
1CT-16-08SP | M16x1.5 | R1 / 2 "x14 | 10 | 21.8 | 36.8 | 22 | 19 | |
1CT-16-12SP | M16x1.5 | R3 / 4 "x14 | 10 | 21.5 | 36.5 | 30 | 19 | |
1CT-18-04SP | M18x1.5 | R1 / 4 "x19 | 12 | 18.5 | 33.5 | 19 | 22 | |
1CT-18-06SP | M18x1.5 | R3 / 8 "x19 | 12 | 18.6 | 33.6 | 19 | 22 | |
1CT-18-08SP | M18x1.5 | R1 / 2 "x14 | 12 | 21.8 | 36.8 | 22 | 22 | |
1CT-22-08SP | M22x1.5 | R1 / 2 "x14 | 15 | 22.8 | 37.8 | 24 | 27 | |
1CT-26-08SP | M26x1.5 | R1 / 2 "x14 | 18 | 23.3 | 39.8 | 27 | 32 | 16L |
1CT-26-12SP | M26x1.5 | R3 / 4 "x14 | 18 | 22 | 38.5 | 30 | 32 | |
1CT-30-12SP | M30x2 | R3 / 4 "x14 | 22 | 24 | 40.5 | 32 | 36 | |
1CT-36-16SP | M36x2 | R1 "x11 | 28 | 29.6 | 46.1 | 38 | 41 | |
1CT-36-20SP | M36x2 | R1.1 / 4 "x11 | 28 | 29.3 | 45.8 | 46 | 41 | |
1CT-45-16SP | M45x2 | R1 "x11 | 35 | 29.6 | 51.1 | 46 | 50 | |
1CT-45-20SP | M45x2 | R1.1 / 4 "x11 | 35 | 28.3 | 49.8 | 46 | 50 | |
1CT-52-20SP | M52x2 | R1.1 / 4 "x11 | 42 | 29.8 | 52.8 | 55 | 60 | |
1CT-52-24SP | M52x2 | R1.1 / 2 "x11 | 42 | 29.8 | 52.8 | 55 | 60 | |
1DT-14-04SP | M14x1.5 | R1 / 4 "x19 | 6 | 13 | 36.5 | 17 | 17 | 63S |
1DT-16-04SP | M16x1.5 | R1 / 4 "x19 | 8 | 21.5 | 36.5 | 17 | 19 | |
1DT-18-04SP | M18x1.5 | R1 / 4 "x19 | 10 | 21 | 37.5 | 19 | 22 | |
1DT-20-04SP | M20x1.5 | R1 / 4 "x19 | 12 | 23 | 39.5 | 22 | 24 | |
1DT-20-06SP | M20x1.5 | R3 / 8 "x19 | 12 | 23.1 | 39.6 | 22 | 24 | |
1DT-22-06SP | M22x1.5 | R3 / 8 "x19 | 14 | 24.6 | 42.6 | 24 | 27 | |
1DT-22-08SP | M22x1.5 | R1 / 2 "x14 | 14 | 27.8 | 45.8 | 24 | 27 | |
1DT-24-06SP | M24x1.5 | R3 / 8 "x19 | 16 | 24.1 | 42.6 | 27 | 30 | |
1DT-24-08SP | M24x1.5 | R1 / 2 "x14 | 16 | 27.3 | 45.8 | 27 | 30 | |
1DT-30-12SP | M30x2 | R3 / 4 "x14 | 20 | 28 | 49.5 | 32 | 36 | 40S |
1DT-36-12SP | M36x2 | R3 / 4 "x14 | 25 | 29.5 | 53.5 | 38 | 46 | |
1DT-36-16SP | M36x2 | R1 "x11 | 25 | 34.1 | 58.1 | 38 | 46 | |
1DT-42-16SP | M42x2 | R1 "x11 | 30 | 35.6 | 62.1 | 46 | 50 | |
1DT-42-20SP | M42x2 | R1.1 / 4 "x11 | 30 | 34.3 | 60.8 | 46 | 50 | |
1DT-52-20SP | M52x2 | R1.1 / 4 "x11 | 38 | 36.8 | 67.8 | 55 | 60 | |
1DT-52-24SP | M52x2 | R1.1 / 2 "x11 | 38 | 36.8 | 67.8 | 55 | 60 | |
Remak nan ka si ou enterese bay lòd pou adaptè a nan seri konplè avèk koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 1DT-22-08SP / RN. | ||||||||
7. Idwolik Fittings Adapters 1CN / 1DN Seri
DIN 24 ° kòn fen / Gason NPT fil (SAE J476)
PATI NO. | FIL | TUB OD | DIMANSYON | MPa | ||||
E | F | D1 | l1 | L1 | S1 | S2 | ||
1CN-08-02 | M8X1 | Z1 / 8 "X27 | 4 | 14.4 | 24.4 | 11 | 10 | 10LL |
1CN-10-02LL | M10X1 | Z1 / 8 "X27 | 6 | 12.9 | 24.4 | 11 | 12 | |
1CN-12-02LL | M12X1 | Z1 / 8 "X27 | 8 | 13.9 | 25.4 | 12 | 14 | |
1CN-12-02 | M12X1.5 | Z1 / 8 "X27 | 6 | 13.4 | 28.4 | 12 | 14 | 31. 5L |
1CN-12-04 | M12X1.5 | Z1 / 4 "X18 | 6 | 17.2 | 32.2 | 17 | 14 | |
1CN-14-04 | M14X1.5 | Z1 / 4 "X18 | 8 | 17.2 | 32.2 | 14 | 17 | |
1CN-16-04 | M16X1.5 | Z1 / 4 "X18 | 10 | 18.2 | 33.2 | 17 | 19 | |
1CN-16-06 | M16X1.5 | Z3 / 8 "X18 | 10 | 19.9 | 53.0 | 19 | 19 | |
1CN-18-04 | M18X1.5 | Z1 / 4 "X18 | 12 | 19.2 | 34.2 | 19 | 22 | |
1CN-18-06 | M18X1.5 | Z3 / 8 "X18 | 12 | 19.9 | 34.9 | 19 | 22 | |
1CN-18-08 | M18X1.5 | Z1 / 2 "X14 | 12 | 21.4 | 36.4 | 22 | 22 | |
1CN-22-08 | M22X1.5 | Z1 / 2 "X14 | 15 | 22.4 | 37.4 | 24 | 27 | |
1CN-22-20 | M22X1.5 | Z1.1 / 4 "X11.5 | 15 | 29.8 | 37.4 | 46 | 27 | |
1CN-26-08 | M26X1.5 | Z1 / 2 "X14 | 18 | 22.9 | 39.4 | 27 | 32 | 16L |
1CN-26-12 | M26X1.5 | Z3 / 4 "X14 | 18 | 22.4 | 38.9 | 30 | 32 | |
1CN-30-08 | M30X2 | Z1 / 2 "X14 | 22 | 24.4 | 40.5 | 32 | 36 | |
1CN-30-12 | M30X2 | Z3 / 4 "X14 | 22 | 24.4 | 40.9 | 32 | 36 | |
1CN-36-16 | M36X2 | Z1 "X11.5 | 28 | 29.8 | 46.3 | 41 | 41 | |
1CN-36-20 | M36X2 | Z1.1 / 4 "X11.5 | 28 | 31.3 | 46.3 | 46 | 41 | |
1CN-45-20 | M45X2 | Z1.1 / 4 "X11.5 | 35 | 30.3 | 51.8 | 46 | 50 | |
1CN-52-20 | M52X2 | Z1.1 / 4 "X11.5 | 42 | 31.8 | 55.8 | 55 | 60 | |
1CN-52-24 | M52X2 | Z1.1 / 2 "X11.5 | 42 | 32.8 | 55.8 | 55 | 60 | |
1DN-14-04 | M14X1.5 | Z1 / 4 "X18 | 6 | 22.2 | 37.2 | 17 | 17 | 63S |
1DN-16-04 | M16X1.5 | Z1 / 4 "X18 | 8 | 22.2 | 37.2 | 17 | 19 | |
1DN-18-04 | M18X1.5 | Z1 / 4 "X18 | 10 | 21.7 | 38.2 | 19 | 22 | |
1DN-18-06 | M18X1.5 | Z3 / 8 "X18 | 10 | 22.4 | 38.9 | 19 | 22 | |
1DN-20-04 | M20X1.5 | Z1 / 4 "X18 | 12 | 23.7 | 40.2 | 22 | 24 | |
1DN-20-06 | M20X1.5 | Z3 / 8 "X18 | 12 | 24.4 | 40.9 | 22 | 24 | |
1DN-20-08 | M20X1.5 | Z1 / 2 "X14 | 12 | 25.9 | 42.4 | 22 | 24 | |
1DN-22-08 | M22X1.5 | Z1 / 2 "X14 | 14 | 27.4 | 45.4 | 24 | 27 | |
1DN-24-08 | M24X1.5 | Z1 / 2 "X14 | 16 | 26.9 | 45.4 | 27 | 30 | |
1DN-30-12 | M30X2 | Z3 / 4 "X14 | 20 | 28.4 | 49.9 | 32 | 36 | 40S |
1DN-36-12 | M36X2 | Z3 / 4 "X14 | 25 | 30.9 | 34.0 | 41 | 46 | |
1DN-36-16 | M36X2 | Z1 "X11.5 | 25 | 35.3 | 59.3 | 41 | 46 | |
1DN-42-16 | M42X2 | Z1 "X11.5 | 30 | 35.8 | 59.3 | 46 | 46 | |
1DN-42-20 | M42X2 | Z1.1 / 4 "X11.5 | 30 | 36.3 | 62.8 | 46 | 50 | |
1DN-52-24 | M52X2 | Z1.1 / 2 "X11.5 | 38 | 39.8 | 70.8 | 55 | 60 | |
Remak: Nan ka si ou enterese bay lòd pou adaptè a nan seri konplè ak koupe bag ak nwa, li nesesè insert sifiks "RN" apre nou pa gen pati. pou egzanp 10N-30-12RN. | ||||||||
Baj popilè: DIN fittings pò Styles, Lachin, manifaktirè, Swèd, koutim, kwiv, swagelok, Parker, Stauff, Brennan, asye pur
