Kalite pwodwi: Idwolik bride SAE adaptè ekipman 1BFS9 koud
Nòm endistri yo: SAE J518, ISO 6162, ISO 8434-1, BS5200
Koneksyon E pou style F: 90 ° BSP 60 ° KONTI SEAT / SAE FLANGE 6000PSI
Fòm: koud, dwat, blòk elatriye
Travay presyon Rating: kòd SAE 61 se 2.5 a 31.5 Mpa; Kòd SAE 62 se 40 Mpa.
Materyèl Materyèl: kwiv; Kabòn asye; Asye pur
Aplikasyon: Ekipman Agrikilti, Pwosesis Otomobil, Transfè Chimik, Ekipman Konstriksyon, Transfè Gaz, Idwolik, Ekipman Manifakti, Marin, Manipilasyon Materyèl, Ekipman mobil, Petwòl, Emballage, Transpòtasyon

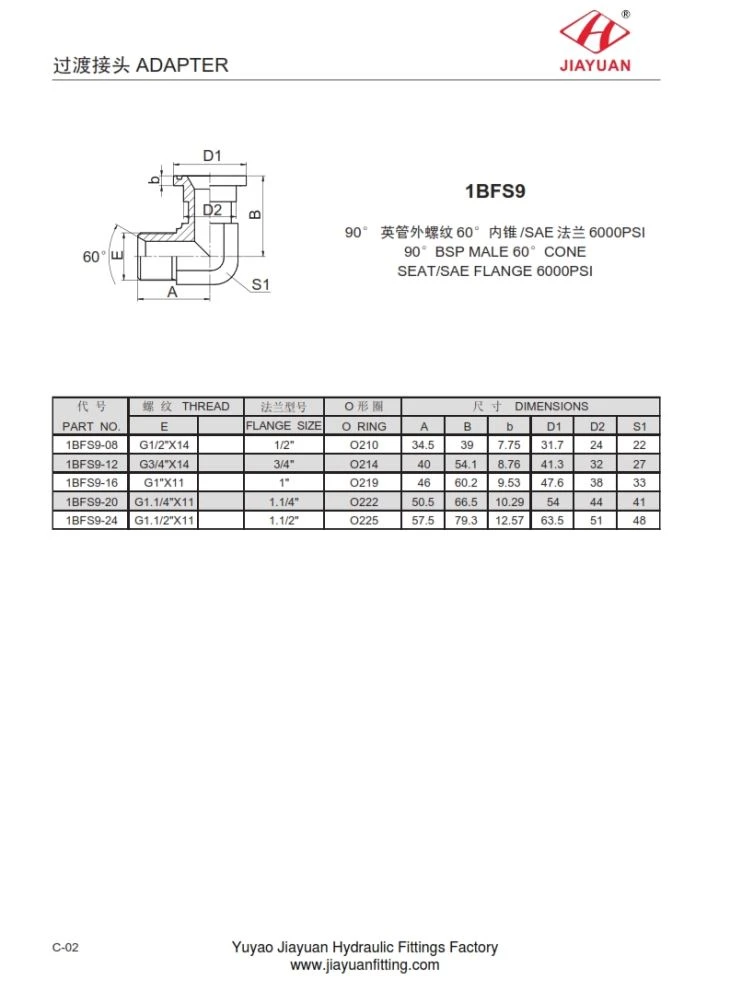

1BFS9 Koud BSP 60 SAE bride 6000 adaptè J518 ISO 6162 Dimansyon dimansyon tablo tablo jan sa a
PATI NO. | FIL | O | DIMANSYON | |||||||
E | FLANG E SIZ E | OU RING | A | B | b | D1 | D2 | S1 | ||
1BFS9-08 | G1 / 2 "X14 | 1/2 " | O210 | 34.5 | 39 | 7.75 | 31.7 | 24 | 22 | |
1BFS9-12 | G3 / 4 "X14 | 3/4 " | O214 | 40 | 54.1 | 8.76 | 41.3 | 32 | 27 | |
1BFS9-16 | G1 "X11 | 1 " | O219 | 46 | 60.2 | 9.53 | 47.6 | 38 | 33 | |
1BFS9-20 | G1.1 / 4 "X11 | 1.1 / 4 " | O222 | 50.5 | 66.5 | 10.29 | 54 | 44 | 41 | |
1BFS9-24 | G1.1 / 2 "X11 | 1.1 / 2 " | O225 | 57.5 | 79.3 | 12.57 | 63.5 | 51 | 48 | |
