Kategori pwodwi: fil BSPT adapte tiyo ekipman
Tablo BSPT gwosè fil: soti nan G1 / 8 "G3", sitou itilize nan UK, lwès Ewòp ak Japon.
BSPT (R) gason ak fi fil estanda tankou pou chak BS 21, ISO 7/1. JIS B 0203, menm jan ak 3852-2 fòm Z, JIS B8363.
Tip tiyo fil: adaptè NPT, adaptè SAE ORB, BSPP, metrik, ekipman pò UNF,

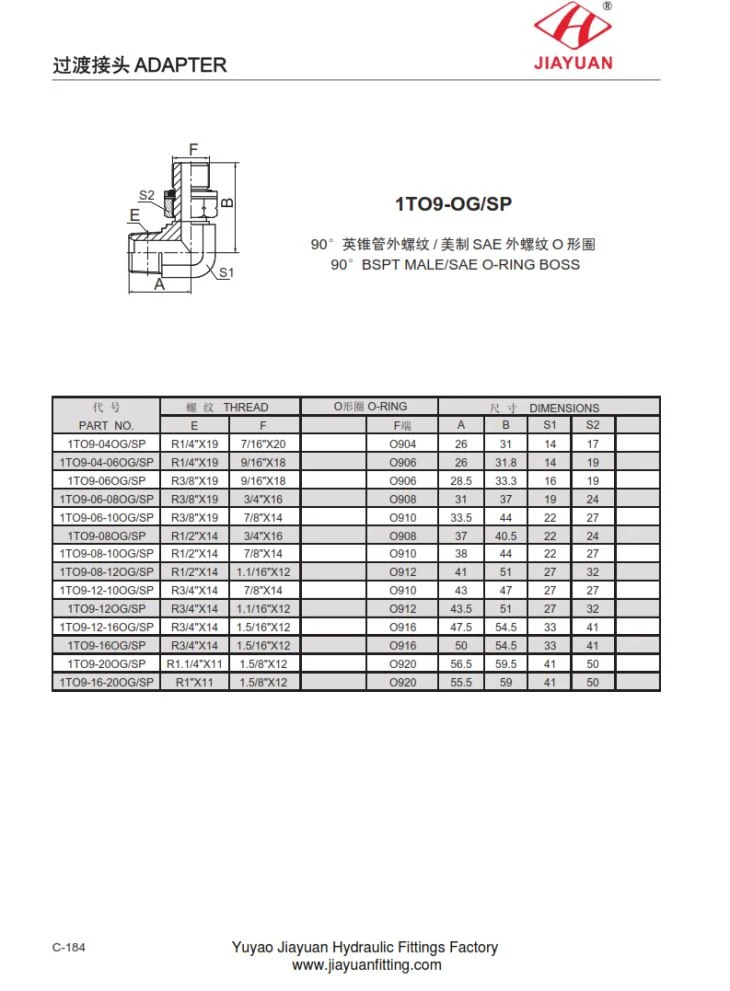

1TO9-OG / SP 90 ° BSPT MALE / SAE O-RING BOSS dimansyon tablo jan sa a:
PATI NO. | FIL | O-RING | DIMANSYON | ||||||
E | F | F | A | B | S1 | S2 | |||
1TO9-04OG / SP | R1 / 4 "X19 | 7/16 "X20 | O904 | 26 | 31 | 14 | 17 | ||
1TO9-04-06OG / SP | R1 / 4 "X19 | 9/16 "X18 | O906 | 26 | 31.8 | 14 | 19 | ||
1TO9-06OG / SP | R3 / 8 "X19 | 9/16 "X18 | O906 | 28.5 | 33.3 | 16 | 19 | ||
1TO9-06-08OG / SP | R3 / 8 "X19 | 3/4 "X16 | O908 | 31 | 37 | 19 | 24 | ||
1TO9-06-10OG / SP | R3 / 8 "X19 | 7/8 "X14 | O910 | 33.5 | 44 | 22 | 27 | ||
1TO9-08OG / SP | R1 / 2 "X14 | 3/4 "X16 | O908 | 37 | 40.5 | 22 | 24 | ||
1TO9-08-10OG / SP | R1 / 2 "X14 | 7/8 "X14 | O910 | 38 | 44 | 22 | 27 | ||
1TO9-08-12OG / SP | R1 / 2 "X14 | 1.1 / 16 "X12 | O912 | 41 | 51 | 27 | 32 | ||
1TO9-12-10OG / SP | R3 / 4 "X14 | 7/8 "X14 | O910 | 43 | 47 | 27 | 27 | ||
1TO9-12OG / SP | R3 / 4 "X14 | 1.1 / 16 "X12 | O912 | 43.5 | 51 | 27 | 32 | ||
1TO9-12-16OG / SP | R3 / 4 "X14 | 1.5 / 16 "X12 | O916 | 47.5 | 54.5 | 33 | 41 | ||
1TO9-16OG / SP | R3 / 4 "X14 | 1.5 / 16 "X12 | O916 | 50 | 54.5 | 33 | 41 | ||
1TO9-20OG / SP | R1.1 / 4 "X11 | 1.5 / 8 "X12 | O920 | 56.5 | 59.5 | 41 | 50 | ||
1TO9-16-20OG / SP | R1 "X11 | 1.5 / 8 "X12 | O920 | 55.5 | 59 | 41 | 50 | ||
