BSP tiyo ekipman dimansyon ak katalòg se menm bagay la tou nan men founisè diferan.
Kalite materyèl ekipman tiyo tankou asye pur, kwiv ak plastik.
UK ak USA BSPP tiyo fil ekipman aplikasyon nan ekipman tiyo ekipman ak ekipman tiyo endistriyèl.
BSP tiyo ftting cartes pou priz soud, NPT gason, SAE ORB, BSPT gason, ORFS gason, DIN 2353 tiyo connecteur, metrik o-bag elatriye.
Fòm nan adaptè tiyo BSPP tankou dwat, koud, Tee, Lakwa, redukteur.
Nou menm tou nou ka bay jiska 2 pous bsp garnitur.

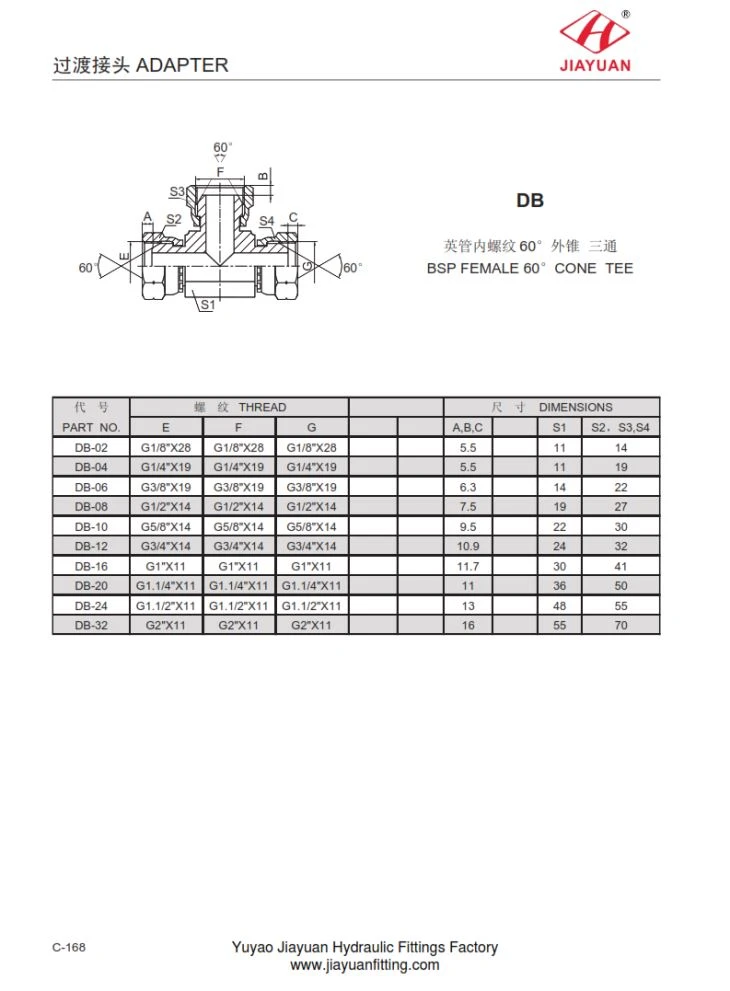

DB BSP FEMENI 60 ° CONE TEE tiyo Connector gwosè tablo tankou swiv:
PATI NON. | FIL | DIMANSYON | ||||
E | F | G | A, B, C | S1 | S2 S3, S4 | |
DB-02 | G1 / 8 "X28 | G1 / 8 "X28 | G1 / 8 "X28 | 5.5 | 11 | 14 |
DB-04 | G1 / 4 "X19 | G1 / 4 "X19 | G1 / 4 "X19 | 5.5 | 11 | 19 |
DB-06 | G3 / 8 "X19 | G3 / 8 "X19 | G3 / 8 "X19 | 6.3 | 14 | 22 |
DB-08 | G1 / 2 "X14 | G1 / 2 "X14 | G1 / 2 "X14 | 7.5 | 19 | 27 |
DB-10 | G5 / 8 "X14 | G5 / 8 "X14 | G5 / 8 "X14 | 9.5 | 22 | 30 |
DB-12 | G3 / 4 "X14 | G3 / 4 "X14 | G3 / 4 "X14 | 10.9 | 24 | 32 |
DB-16 | G1 "X11 | G1 "X11 | G1 "X11 | 11.7 | 30 | 41 |
DB-20 | G1.1 / 4 "X11 | G1.1 / 4 "X11 | G1.1 / 4 "X11 | 11 | 36 | 50 |
DB-24 | G1.1 / 2 "X11 | G1.1 / 2 "X11 | G1.1 / 2 "X11 | 13 | 48 | 55 |
DB-32 | G2 "X11 | G2 "X11 | G2 "X11 | 16 | 55 | 70 |
