Kalite pwodwi: NB500-WF o bag figi sele ekipman tib
Nòm endistri yo: SAE J1453, ISO 8434-3, SAE J514, ISO 8434-2
Koneksyon E pou style F: MANYÈL SOUDYÈ METRIK
Fòm: koud, dwat, Tee, Lakwa elatriye.
ORFS ekipman K ap travay Rating presyon: 3215 psi 5800 psi, 216 ba a 400 bar.
Flat Orfs o bag gwosè twous ak O bag figi konsepsyon sele nou menm tou nou ka ofri.
Diferans ant sele sou figi o ak sele bòs nan bag an
Materyèl Materyèl: kwiv; Kabòn asye; Asye pur
Aplikasyon: Ekipman Agrikilti, Pwosesis Otomobil, Transfè Chimik, Ekipman Konstriksyon, Transfè Gaz, Idwolik, Ekipman Manifakti, Marin, Manipilasyon Materyèl, Ekipman mobil, Petwòl, Emballage, Transpòtasyon

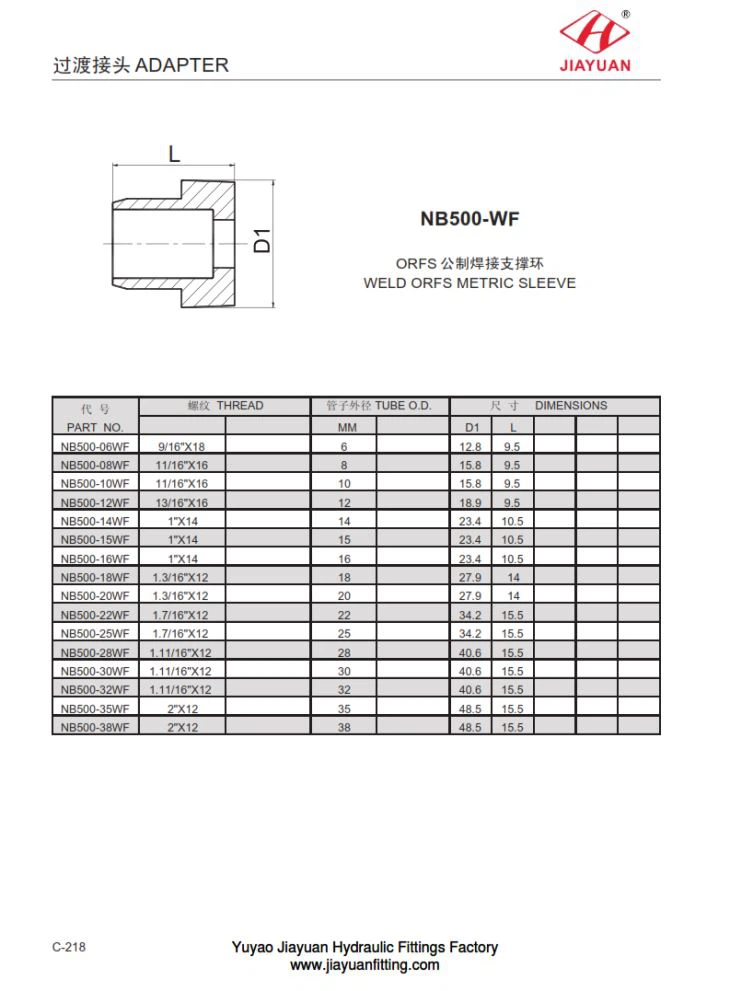

NB500-WF WELD ORFS METRIC SLEEVE Dimension table dimansyon tablo jan sa a:
PATI NON. | FIL | TUBE | OD DIMANSYON | |||||||
MM | D1 | L | ||||||||
NB500-06WF | 9/16 "X18 | 6 | 12.8 | 9.5 | ||||||
NB500-08WF | 11/16 "X16 | 8 | 15.8 | 9.5 | ||||||
NB500-10WF | 11/16 "X16 | 10 | 15.8 | 9.5 | ||||||
NB500-12WF | 13/16 "X16 | 12 | 18.9 | 9.5 | ||||||
NB500-14WF | 1 "X14 | 14 | 23.4 | 10.5 | ||||||
NB500-15WF | 1 "X14 | 15 | 23.4 | 10.5 | ||||||
NB500-16WF | 1 "X14 | 16 | 23.4 | 10.5 | ||||||
NB500-18WF | 1.3 / 16 "X12 | 18 | 27.9 | 14 | ||||||
NB500-20WF | 1.3 / 16 "X12 | 20 | 27.9 | 14 | ||||||
NB500-22WF | 1.7 / 16 "X12 | 22 | 34.2 | 15.5 | ||||||
NB500-25WF | 1.7 / 16 "X12 | 25 | 34.2 | 15.5 | ||||||
NB500-28WF | 1.11 / 16 "X12 | 28 | 40.6 | 15.5 | ||||||
NB500-30WF | 1.11 / 16 "X12 | 30 | 40.6 | 15.5 | ||||||
NB500-32WF | 1.11 / 16 "X12 | 32 | 40.6 | 15.5 | ||||||
NB500-35WF | 2 "X12 | 35 | 48.5 | 15.5 | ||||||
NB500-38WF | 2 "X12 | 38 | 48.5 | 15.5 | ||||||
