Kalite pwodwi: Metrik Bite Kalite Tib Twous-Tib ak efase Connector efondre
Standards Industry: DIN 2353
Koneksyon E a style F: 24 ° kòn fen nan Esansyèl, Swivel ak o-bag, weld-sou / weld-an, stud, redukteur
Fòm: koud, parwa elatriye.
K ap travay presyon: 16-63 Mpa
Materyèl Materyèl: kwiv; Kabòn asye; Asye pur
Aplikasyon: Ekipman Agrikilti, Pwosesis Otomobil, Transfè Chimik, Ekipman Konstriksyon, Transfè Gaz, Idwolik, Ekipman Manifakti, Marin, Manipilasyon Materyèl, Ekipman mobil, Petwòl, Emballage, Transpòtasyon

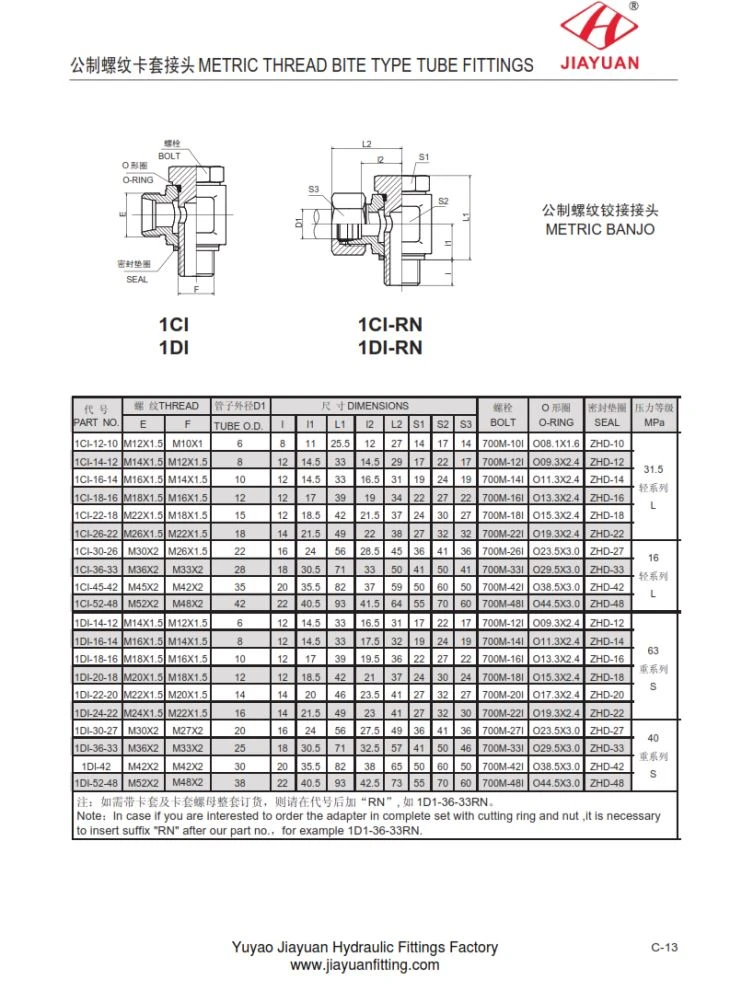

1CI 1DI-RN metric bag engredyan DIN 2353 dimansyon dimansyon tablo tablo jan sa a
PATI NO. FIL D1
E F TUBE OD
1CI-12-10 M12X1.5 M10X1 6
1CI-14-12 M14X1.5 M12X1.5 8
1CI-16-14 M16X1.5 M14X1.5 10
1CI-18-16 M18X1.5 M16X1.5 12
1CI-22-18 M22X1.5 M18X1.5 15
1CI-26-22 M26X1.5 M22X1.5 18
1CI-30-26 M30X2 M26X1.5 22
1CI-36-33 M36X2 M33X2 28
1CI-45-42 M45X2 M42X2 35
1CI-52-48 M52X2 M48X2 42
1DI-14-12 M14X1.5 M12X1.5 6
1DI-16-14 M16X1.5 M14X1.5 8
1DI-18-16 M18X1.5 M16X1.5 10
1DI-20-18 M20X1.5 M18X1.5 12
1DI-22-20 M22X1.5 M20X1.5 14
1DI-24-22 M24X1.5 M22X1.5 16
1DI-30-27 M30X2 M27X2 20
1DI-36-33 M36X2 M33X2 25
1DI-42 M42X2 M42X2 30
1DI-52-48 M52X2 M48X2 38
Baj popilè: Metrik enteryè ekipman idwolik, Lachin, manifaktirè, Swèd, koutim, kwiv, swagelok, Parker, Stauff, Brennan, asye pur.
