Kalite pwodwi: Metrik Bite Kalite Tib Twous-Tib Connector reglabl
Nòm endistri yo: DIN 3861, ISO 8434-1, SAE J2244, ISO 6149-2
Koneksyon E a style F: 24 ° kòn fen nan Esansyèl, Swivel ak o-bag, weld-sou / weld-an, stud, redukteur
Fòm: koud, 90 degre koud elatriye.
K ap travay presyon: 16-63 Mpa
Materyèl Materyèl: kwiv; Kabòn asye; Asye pur
Aplikasyon: Ekipman Agrikilti, Pwosesis Otomobil, Transfè Chimik, Ekipman Konstriksyon, Transfè Gaz, Idwolik, Ekipman Manifakti, Marin, Manipilasyon Materyèl, Ekipman mobil, Petwòl, Emballage, Transpòtasyon

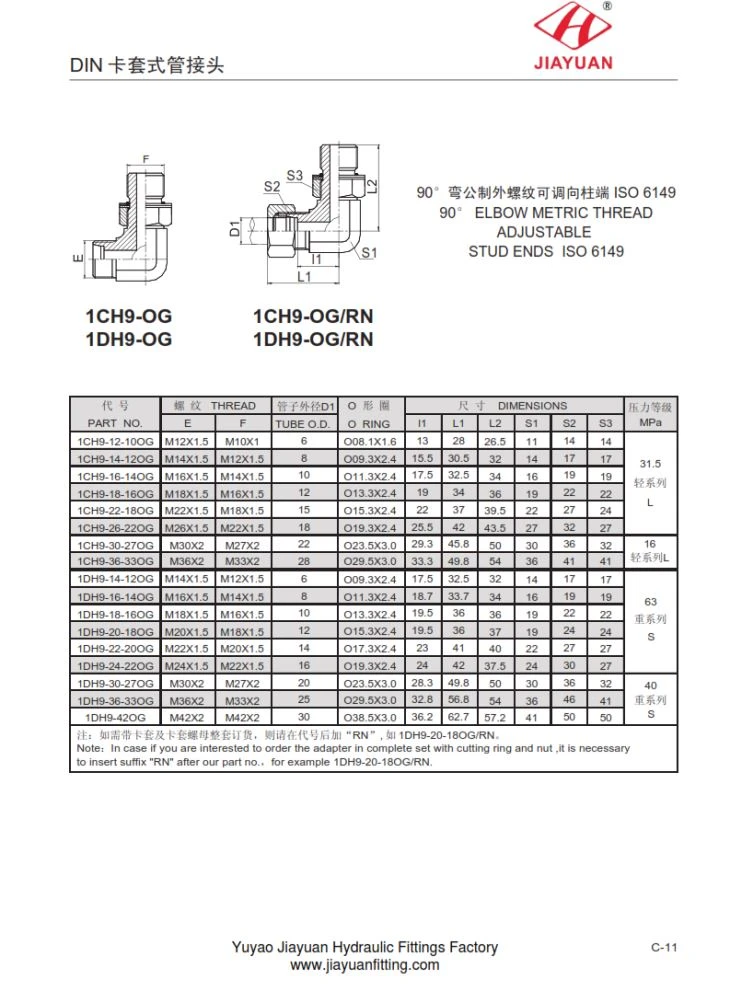

1CH9 1DH9-OG-RN Stud koud reglabl metrik reglabl ISO 6149 dimansyon dimansyon tablo tablo jan sa a
PATI NO. FIL D1
E F TUBE OD
1CH9-12-10OG M12X1.5 M10X1 6
1CH9-14-12OG M14X1.5 M12X1.5 8
1CH9-16-14OG M16X1.5 M14X1.5 10
1CH9-18-16OG M18X1.5 M16X1.5 12
1CH9-22-18OG M22X1.5 M18X1.5 15
1CH9-26-22OG M26X1.5 M22X1.5 18
1CH9-30-27OG M30X2 M27X2 22
1CH9-36-33OG M36X2 M33X2 28
1DH9-14-12OG M14X1.5 M12X1.5 6
1DH9-16-14OG M16X1.5 M14X1.5 8
1DH9-18-16OG M18X1.5 M16X1.5 10
1DH9-20-18OG M20X1.5 M18X1.5 12
1DH9-22-20OG M22X1.5 M20X1.5 14
1DH9-24-22OG M24X1.5 M22X1.5 16
1DH9-30-27OG M30X2 M27X2 20
1DH9-36-33OG M36X2 M33X2 25
1DH9-42OG M42X2 M42X2 30
Baj popilè: Koud metrik reglabl ekipman stud, Lachin, manifaktirè, Swèd, koutim, kwiv, swagelok, Parker, Stauff, Brennan, asye pur.
