Kategori pwodwi: JIC cartes idwolik yo opere Fitting pou koneksyon tib nan pouvwa likid
Pwodwi estanda: ISO 8434-2, SAE J514.
Materyèl: asye kabòn, Nerjaveèi asye oswa kwiv alyaj.
Fen tib JIC nan lòt koneksyon fen kòm swiv: BSP captive sele E, G, H kalite, ISO seri 6149 ekipman, JIS B2351 ekipman, ISO 11926 ak SAE J1926 garnitur ORB, DIN 3852 ak ISO 1179 ekipman, elatriye ISO 9974 elatriye

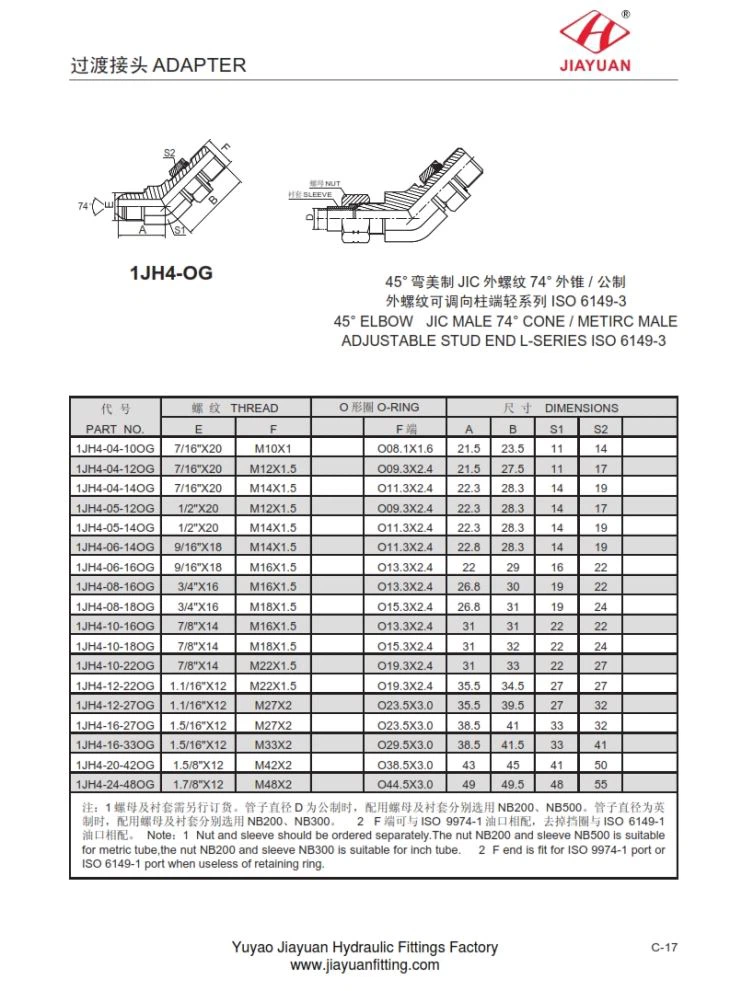

1JH4-OG 45 ° KWIT JIC MALE 74 ° CONE / METIRC gason AJISTE ajiste STUD END L-SERI ISO 6149-3 dimansyon tablo jan sa a:
PA RT N O. | T HR EA D | OU | DIM E N S I O NS | ||||||
E | F | F | A | B | S 1 | S 2 | |||
1 J H4 - 04 - 10 O G | 7/16 " X 20 | M10 X 1 | O 08.1 X 1.6 | 21.5 | 23.5 | 11 | 14 | ||
1 J H4 - 04 - 12 O G | 7/16 " X 20 | M12 X 1.5 | O 09.3 X 2.4 | 21.5 | 27.5 | 11 | 17 | ||
1 J H4 - 04 - 14 O G | 7/16 " X 20 | M14 X 1.5 | O 11.3 X 2.4 | 22.3 | 28.3 | 14 | 19 | ||
1 J H4 - 05 - 12 O G | 1/2 " X 20 | M12 X 1.5 | O 09.3 X 2.4 | 22.3 | 28.3 | 14 | 17 | ||
1 J H4 - 05 - 14 O G | 1/2 " X 20 | M14 X 1.5 | O 11.3 X 2.4 | 22.3 | 28.3 | 14 | 19 | ||
1 J H4 - 06 - 14 O G | 9/16 " X 18 | M14 X 1.5 | O 11.3 X 2.4 | 22.8 | 28.3 | 14 | 19 | ||
1 J H4 - 06 - 16 O G | 9/16 " X 18 | M16 X 1.5 | O 13.3 X 2.4 | 22 | 29 | 16 | 22 | ||
1 J H4 - 08 - 16 O G | 3/4 " X 16 | M16 X 1.5 | O 13.3 X 2.4 | 26.8 | 30 | 19 | 22 | ||
1 J H4 - 08 - 18 O G | 3/4 " X 16 | M18 X 1.5 | O 15.3 X 2.4 | 26.8 | 31 | 19 | 24 | ||
1 J H4 - 10 - 16 O G | 7/8 " X 14 | M16 X 1.5 | O 13.3 X 2.4 | 31 | 31 | 22 | 22 | ||
1 J H4 - 10 - 18 O G | 7/8 " X 14 | M18 X 1.5 | O 15.3 X 2.4 | 31 | 32 | 22 | 24 | ||
1 J H4 - 10 - 22 O G | 7/8 " X 14 | M22 X 1.5 | O 19.3 X 2.4 | 31 | 33 | 22 | 27 | ||
1 J H4 - 12 - 22 O G | 1.1 / 16 " X 12 | M22 X 1.5 | O 19.3 X 2.4 | 35.5 | 34.5 | 27 | 27 | ||
1 J H4 - 12 - 27 O G | 1.1 / 16 " X 12 | M27 X 2 | O 23.5 X 3.0 | 35.5 | 39.5 | 27 | 32 | ||
1 J H4 - 16 - 27 O G | 1.5 / 16 " X 12 | M27 X 2 | O 23.5 X 3.0 | 38.5 | 41 | 33 | 32 | ||
1 J H4 - 16 - 33 O G | 1.5 / 16 " X 12 | M33 X 2 | O 29.5 X 3.0 | 38.5 | 41.5 | 33 | 41 | ||
1 J H4 - 20 - 42 O G | 1.5 / 8 " X 12 | M42 X 2 | O 38.5 X 3.0 | 43 | 45 | 41 | 50 | ||
1 J H4 - 24 - 48 O G | 1.7 / 8 " X 12 | M48 X 2 | O 44.5 X 3.0 | 49 | 49.5 | 48 | 55 | ||
