Kategori pwodwi: SAE 37 deg Fizè adaptè adaptè
Materyèl: asye kabòn, Nerjaveèi asye oswa kwiv alyaj

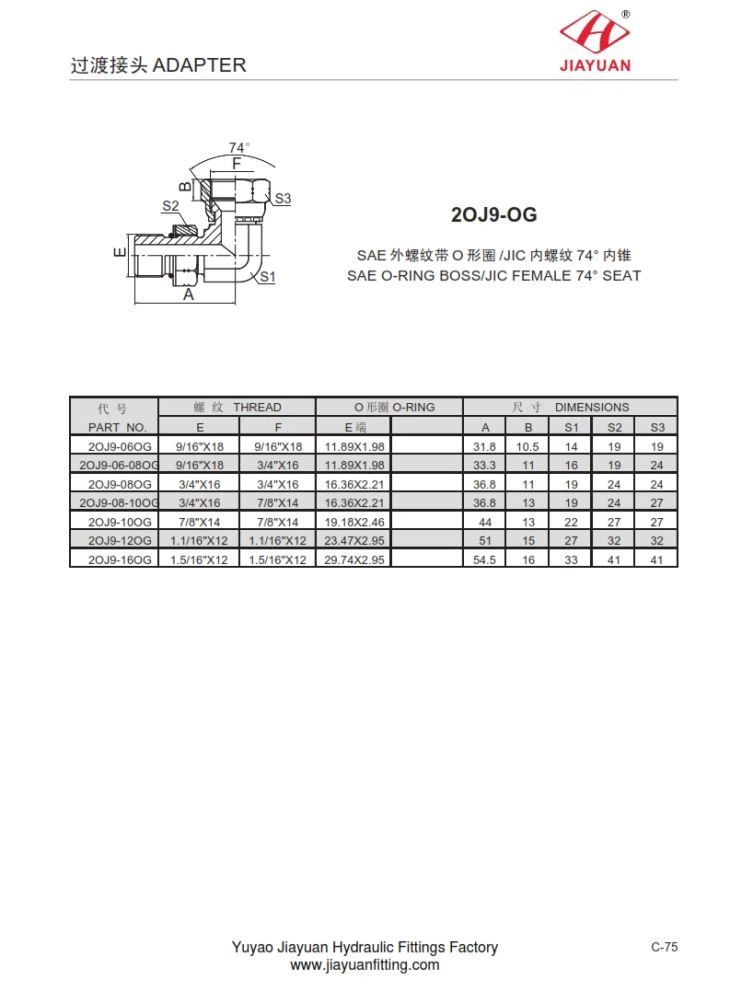

2OJ9-OG SAE O-RING BOSS / JIC FEMALE 74 SEAT dimansyon tablo jan sa a:
PAR T NON . | THREA D | O-RIN G | DIMENSYON S | ||||||
E | F | E | A | B | S 1 | S 2 | S 3 | ||
2OJ9-06O G | 9/16 "X1 8 | 9/16 "X1 8 | 11.89X1.9 8 | 31. 8 | 10. 5 | 1 4 | 1 9 | 1 9 | |
2OJ9-06-08O G | 9/16 "X1 8 | 3/4 "X1 6 | 11.89X1.9 8 | 33. 3 | 1 1 | 1 6 | 1 9 | 2 4 | |
2OJ9-08O G | 3/4 "X1 6 | 3/4 "X1 6 | 16.36X2.2 1 | 36. 8 | 1 1 | 1 9 | 2 4 | 2 4 | |
2OJ9-08-10O G | 3/4 "X1 6 | 7/8 "X1 4 | 16.36X2.2 1 | 36. 8 | 1 3 | 1 9 | 2 4 | 2 7 | |
2OJ9-10O G | 7/8 "X1 4 | 7/8 "X1 4 | 19.18X2.4 6 | 4 4 | 1 3 | 2 2 | 2 7 | 2 7 | |
2OJ9-12O G | 1.1 / 16 "X1 2 | 1.1 / 16 "X1 2 | 23.47X2.9 5 | 5 1 | 1 5 | 2 7 | 3 2 | 3 2 | |
2OJ9-16O G | 1.5 / 16 "X1 2 | 1.5 / 16 "X1 2 | 29.74X2.9 5 | 54. 5 | 1 6 | 3 3 | 4 1 | 4 1 | |
