Koud JIC Gason Fi Pivot

Kategori pwodwi: SAE 37 deg flare ekipe adaptè Materyèl: asye kabòn, Nerjaveèi asye oswa alyaj kwiv 2J9 90 ° JWÈT 90 ° jik gason 74 ° kòn / JIC fi Fi ° dimansyon SEED tablo jan sa a:

Voye rechèch

2J9 JIC MALE / FEMALE

Chat kounye a

Dekri teren

Kategori pwodwi: SAE 37 deg Fizè adaptè adaptè

Materyèl: asye kabòn, Nerjaveèi asye oswa kwiv alyaj

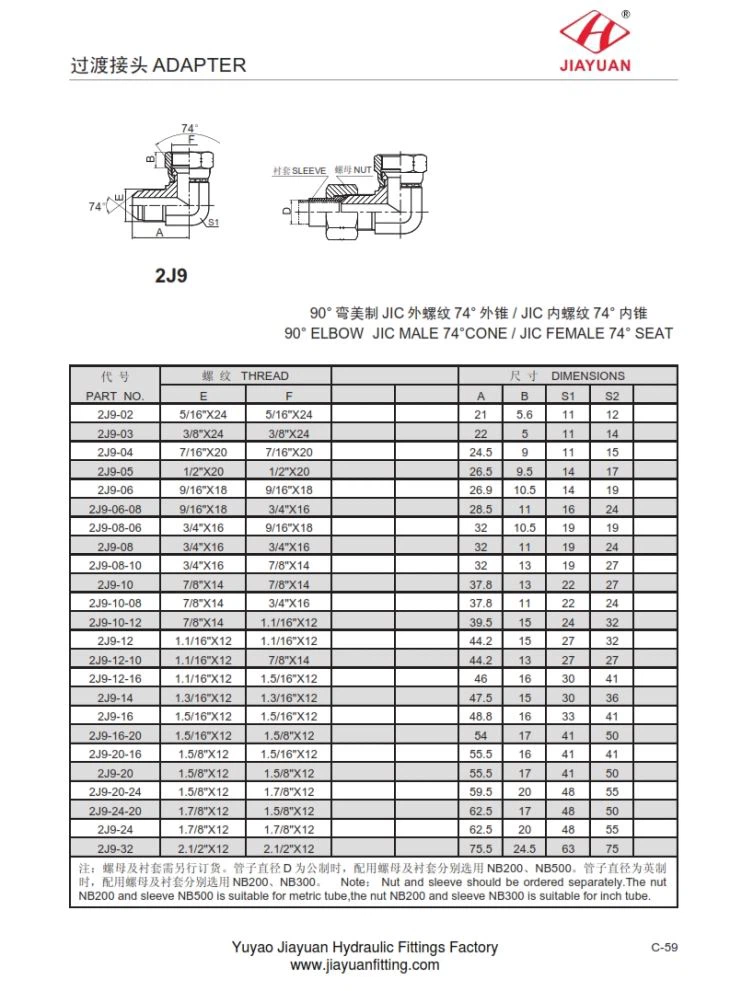

2J9 90 ° KOUJE JIC ANWO 74 ° CONE / JIC FEMENI 74 ° SEAT tablo dimansyon jan sa a:

PA RT N O.	T HR EA D		DIM E N S I O NS
PA RT N O.	E	F	A	B	S 1	S 2
2 J 9 - 02	5/16 " X 24	5/16 " X 24	21	5.6	11	12
2 J 9 - 03	3/8 " X 24	3/8 " X 24	22	5	11	14
2 J 9 - 04	7/16 " X 20	7/16 " X 20	24.5	9	11	15
2 J 9 - 05	1/2 " X 20	1/2 " X 20	26.5	9.5	14	17
2 J 9 - 06	9/16 " X 18	9/16 " X 18	26.9	10.5	14	19
2 J 9 - 06 - 08	9/16 " X 18	3/4 " X 16	28.5	11	16	24
2 J 9 - 08 - 06	3/4 " X 16	9/16 " X 18	32	10.5	19	19
2 J 9 - 08	3/4 " X 16	3/4 " X 16	32	11	19	24
2 J 9 - 08 - 10	3/4 " X 16	7/8 " X 14	32	13	19	27
2 J 9-10	7/8 " X 14	7/8 " X 14	37.8	13	22	27
2 J 9 - 10 - 08	7/8 " X 14	3/4 " X 16	37.8	11	22	24
2 J 9 - 10 - 12	7/8 " X 14	1.1 / 16 " X 12	39.5	15	24	32
2 J 9-12	1.1 / 16 " X 12	1.1 / 16 " X 12	44.2	15	27	32
2 J 9 - 12 - 10	1.1 / 16 " X 12	7/8 " X 14	44.2	13	27	27
2 J 9 - 12 - 16	1.1 / 16 " X 12	1.5 / 16 " X 12	46	16	30	41
2 J 9-14	1.3 / 16 " X 12	1.3 / 16 " X 12	47.5	15	30	36
2 J 9-16	1.5 / 16 " X 12	1.5 / 16 " X 12	48.8	16	33	41
2 J 9 - 16 - 20	1.5 / 16 " X 12	1.5 / 8 " X 12	54	17	41	50
2 J 9 - 20 - 16	1.5 / 8 " X 12	1.5 / 16 " X 12	55.5	16	41	41
2 J 9 - 20	1.5 / 8 " X 12	1.5 / 8 " X 12	55.5	17	41	50
2 J 9 - 20 - 24	1.5 / 8 " X 12	1.7 / 8 " X 12	59.5	20	48	55
2 J 9 - 24 - 20	1.7 / 8 " X 12	1.5 / 8 " X 12	62.5	17	48	50
2 J 9-24	1.7 / 8 " X 12	1.7 / 8 " X 12	62.5	20	48	55
2 J 9 - 32	2.1 / 2 " X 12	2.1 / 2 " X 12	75.5	24.5	63	75
