E45 Koud Gason NPT kòn BSP Fi
Kalite BSPP fil 60 ekipman kòn degre: avèk oswa san o-bag, gason oswa swviel Connector fanm.
Estanda nan katalòg BSPP ekipman ki baze sou ISO 8434-6 ak BS 5200.
Fil yo pou koneksyon an 60 kòn degre yo BSPP konfòme a ISO 228-1.
Koneksyon metalik tib pou pouvwa likid idwolik ak itilizasyon jeneral.
Jiayuan tou ka ofri Nerjaveèi asye BSP garnitur, kwiv bsp garnitur tiyo, bsp ekipman kawotchou elatriye.

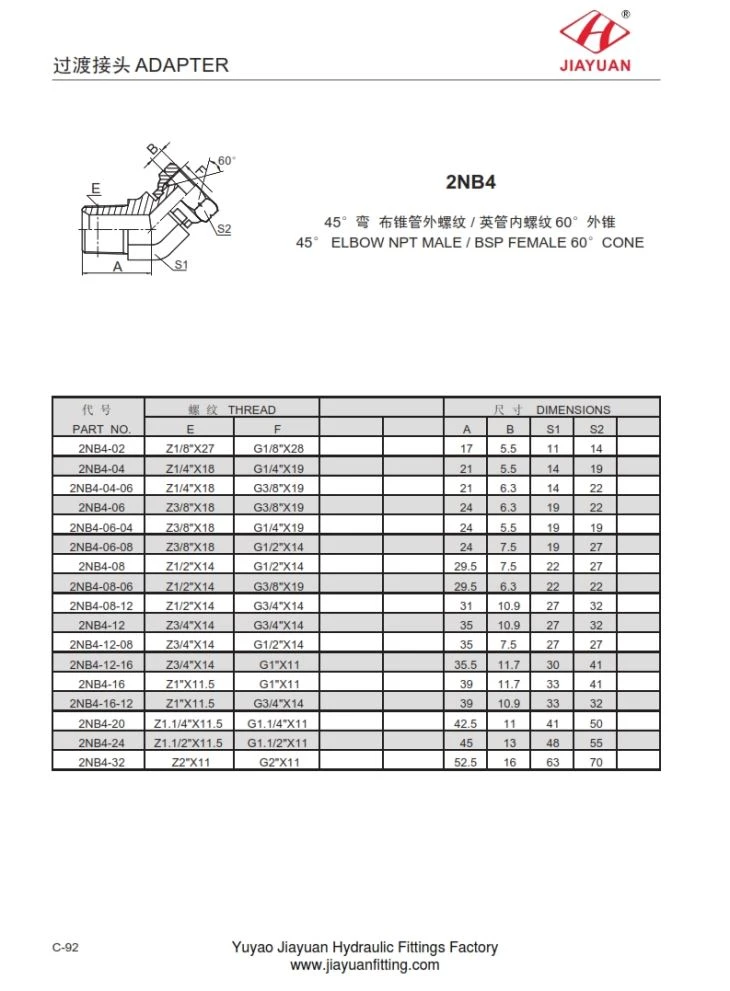

2NB4 45 ° KONBE NPT ANWO / BSP FEMENI 60 ° CONE dimensionnement connecteur dimansyon jan sa a:
PAR T NON . | THREA D | DIMENSYON S | |||||
E | F | A | B | S 1 | S 2 | ||
2NB4-0 2 | Z1 / 8 "X2 7 | G1 / 8 "X2 8 | 1 7 | 5. 5 | 1 1 | 1 4 | |
2NB4-0 4 | Z1 / 4 "X1 8 | G1 / 4 "X1 9 | 2 1 | 5. 5 | 1 4 | 1 9 | |
2NB4-04-0 6 | Z1 / 4 "X1 8 | G3 / 8 "X1 9 | 2 1 | 6. 3 | 1 4 | 2 2 | |
2NB4-0 6 | Z3 / 8 "X1 8 | G3 / 8 "X1 9 | 2 4 | 6. 3 | 1 9 | 2 2 | |
2NB4-06-0 4 | Z3 / 8 "X1 8 | G1 / 4 "X1 9 | 2 4 | 5. 5 | 1 9 | 1 9 | |
2NB4-06-0 8 | Z3 / 8 "X1 8 | G1 / 2 "X1 4 | 2 4 | 7. 5 | 1 9 | 2 7 | |
2NB4-0 8 | Z1 / 2 "X1 4 | G1 / 2 "X1 4 | 29. 5 | 7. 5 | 2 2 | 2 7 | |
2NB4-08-0 6 | Z1 / 2 "X1 4 | G3 / 8 "X1 9 | 29. 5 | 6. 3 | 2 2 | 2 2 | |
2NB4-08-1 2 | Z1 / 2 "X1 4 | G3 / 4 "X1 4 | 3 1 | 10. 9 | 2 7 | 3 2 | |
2NB4-1 2 | Z3 / 4 "X1 4 | G3 / 4 "X1 4 | 3 5 | 10. 9 | 2 7 | 3 2 | |
2NB4-12-0 8 | Z3 / 4 "X1 4 | G1 / 2 "X1 4 | 3 5 | 7. 5 | 2 7 | 2 7 | |
2NB4-12-1 6 | Z3 / 4 "X1 4 | G1 "X1 1 | 35. 5 | 11. 7 | 3 0 | 4 1 | |
2NB4-1 6 | Z1 "X11. 5 | G1 "X1 1 | 3 9 | 11. 7 | 3 3 | 4 1 | |
2NB4-16-1 2 | Z1 "X11. 5 | G3 / 4 "X1 4 | 3 9 | 10. 9 | 3 3 | 3 2 | |
2NB4-2 0 | Z1.1 / 4 "X11. 5 | G1.1 / 4 "X1 1 | 42. 5 | 1 1 | 4 1 | 5 0 | |
2NB4-2 4 | Z1.1 / 2 "X11. 5 | G1.1 / 2 "X1 1 | 4 5 | 1 3 | 4 8 | 5 5 | |
2NB4-3 2 | Z2 "X1 1 | G2 "X1 1 | 52. 5 | 1 6 | 6 3 | 7 0 | |
